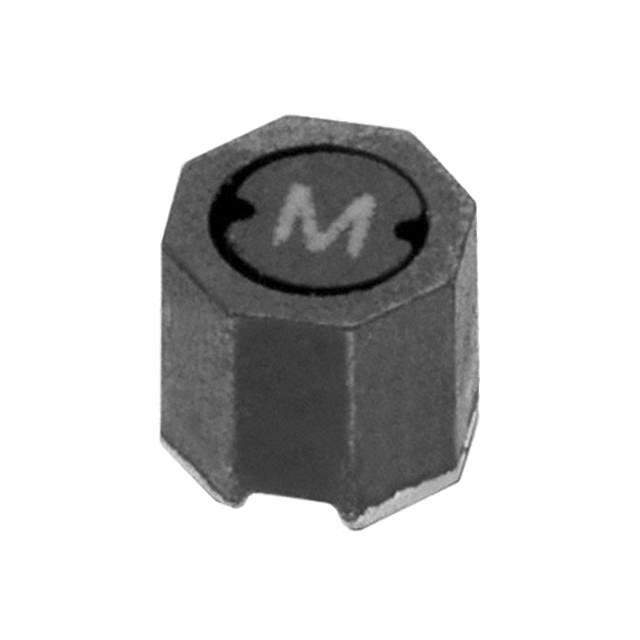

744025100 Real Image
Same model may have multiple batches, images only for reference.

744025100

Part No 744025100
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 10UH 1A 190 MOHM SMD
Datasheet
744025100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.1A
Shielding Shielded
DC Resistance (DCR) 190mOhm Max
Frequency - Self Resonant 41MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2828
Size / Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 550 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857198-744025100
Ultra Librarian 3D Model Ultra Librarian 744025100 CAD Model

Description

The WE-TPC series is a drum core, wirewound type of fixed inductor manufactured by Wurth Electronics Inc.

  • Size: 0.110" L x 0.110" W (2.80mm x 2.80mm)
  • Height: 0.118" (3.00mm)
  • Inductance: 10 µH
  • Tolerance: ±20%
  • Shielded: Yes
  • Mounting: Surface Mount
  • DC Resistance (DCR): 190mOhm max
  • Current Rating: 1 A
  • Operating Temperature Range: -40°C to 125°C
