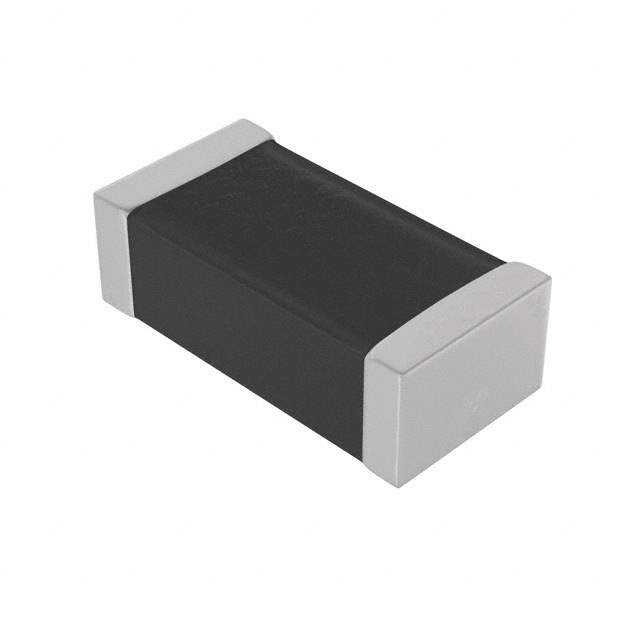

742792731 Real Image
Same model may have multiple batches, images only for reference.

742792731

Part No 742792731
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 100 OHM 0402 1LN
Datasheet
742792731 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Wurth Electronics Inc
Series WE-CBF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 100 Ohms @ 100 MHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 90mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 853052-742792731
Ultra Librarian 3D Model Ultra Librarian 742792731 CAD Model

Description

The WE-CBF series from Wurth Electronics Inc is a ferrite bead filter designed for signal line applications.

  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Maximum Height: 0.022" (0.55mm)
  • Current Rating: 1.2A
  • Impedance: 100 Ohms @ 100 MHz
  • DC Resistance: 90mOhm
  • Mounting Type: Surface Mountable
  • Package: 0402 (1005 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • Series: WE-CBF
  • Standard Package: 10,000 pcs
  • Status: Active
