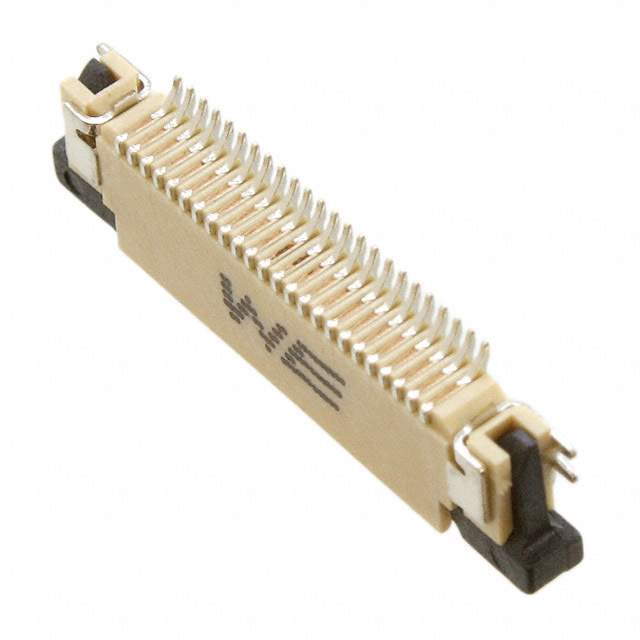

Same model may have multiple batches, images only for reference.

68712414022

Name: 68712414022
Brand: Wurth Electronics Inc
SKU: 1381005
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	68712414022
Manufacturer	Wurth Electronics Inc
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC TOP 24POS 0.5MM R/A / 24 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	68712414022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Wurth Electronics Inc
Series	WR-FPC
Package	Tape & Reel
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	24
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	100.0µin (2.54µm)
Housing Color	Ivory
Actuator Color	Black
Mating Cycles	25
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Standard Package	2,000 pcs
Win Source Part Number	1381005-68712414022
Ultra Librarian 3D Model	Ultra Librarian 68712414022 CAD Model

Description

The 1381005-68712414022 is an FFC/FPC connector assembly from the WR-FPC series from Wurth Electronics Inc.

Number of Positions: 24
Pitch: 0.020" (0.50mm)
Feature: Zero Insertion Force (ZIF)
Termination: Solder
Contact Finish: Tin
Package: Tape and Reel
Mounting Type: Surface Mount
Orientation: Right-Angle
Voltage Rating: 50V
Current Rating: 0.5A
RoHS: Compliant
Moisture Sensitivity Level: 1 (unlimited)
