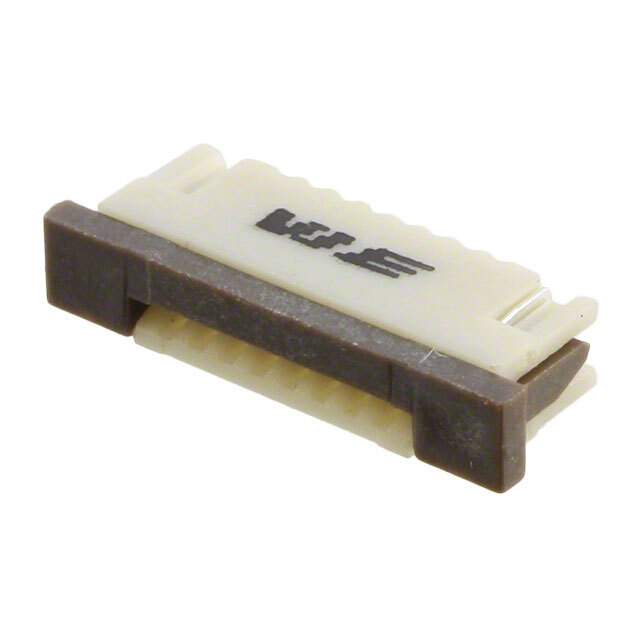

The WR-FPC series from Wurth Electronics Inc offers a reliable and efficient solution for connecting electronic components.

• Connector Type: FFC, FPC (Flat Flexible) Connector Assembly
• Number of Positions: 8
• Pitch: 0.039" (1.00mm)
• Features: Solder Retention, Zero Insertion Force (ZIF)
• Contact Material: Phosphor Bronze
• Contact Finish: Tin
• Housing and Actuator Material: Polyphenylene Sulfide (PPS)
• Material Flammability Rating: UL94 V-0
• Mounting Type: Surface Mount, Right Angle
• Voltage Rating: 125V
• Current Rating: 1A
• Operating Temperature: -25°C to 85°C
• Standard Package: 1,500 pcs
