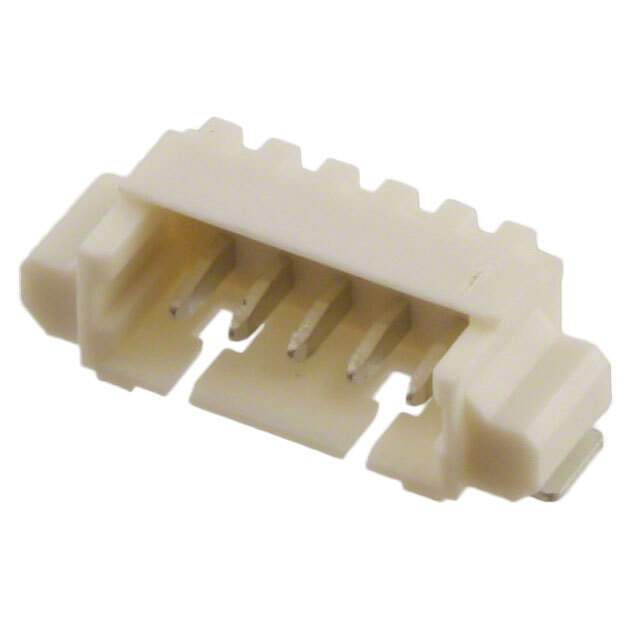

653105131822

Name: 653105131822
Brand: Wurth Electronics Inc
SKU: 803822
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	653105131822
Manufacturer	Wurth Electronics Inc
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 5POS 1.25MM / 1.25 SMT MALE HORIZONTAL SHROUDED HEADER
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049"
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.084" (2.13mm)
Insulation Height	0.134" (3.40mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA46), Nylon 4/6
Features	Solder Retention
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	125V
Manufacturer Pack Quantity	1,500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	803822-653105131822
Ultra Librarian 3D Model	Ultra Librarian 653105131822 CAD Model

Description

The Würth Elektronik header connector is an electronic component that is designed to connect wires or cables to a printed circuit board (PCB).

Mounting: Surface Mount, Right Angle
Positions: 5
Shrouding: Shrouded - 4 Wall
Contact Type: Male Pin
Contact Material: Copper Alloy
Voltage: 125V
Current: 1A
Temperature Range: -40°C to 85°C
Contact Length - Mating: 0.084" (2.13mm)
