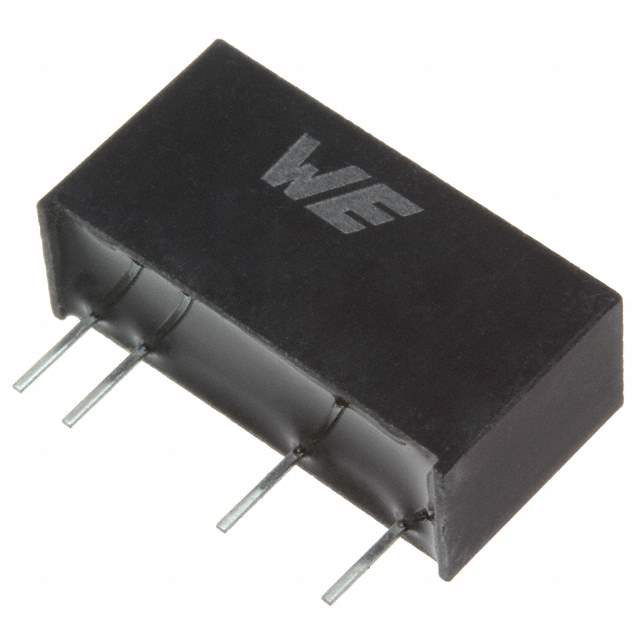

177920514 Real Image1 177920514 Real Image2
Same model may have multiple batches, images only for reference.
177920514 Real Image1 177920514 Real Image2
177920514 Real Image1 177920514 Real Image2
Same model may have multiple batches, images only for reference.

177920514

Part No 177920514
Manufacturer Wurth Electronics Inc
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
177920514 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Wurth Electronics Inc
Series MagI³C (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 4 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.1mm x 10.2mm)
Supplier Device Package -
Control Features -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 25 pcs
Win Source Part Number 1380578-177920514
Ultra Librarian 3D Model Ultra Librarian 177920514 CAD Model

Description

The MagI³C (1W) isolated module, part number 1380578-177920514, is a DC-DC converter designed for power supply applications.

  • Size: 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.1mm x 10.2mm)
  • Application: ITE (Commercial)
  • Power Rating: 1W
  • Maximum Output Current: 200mA
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 5V Regulated
  • Efficiency: 75%
  • Mounting: Through Hole
  • Manufacturer: Wurth Electronics Inc
  • Temperature Range: -40°C to 85°C
