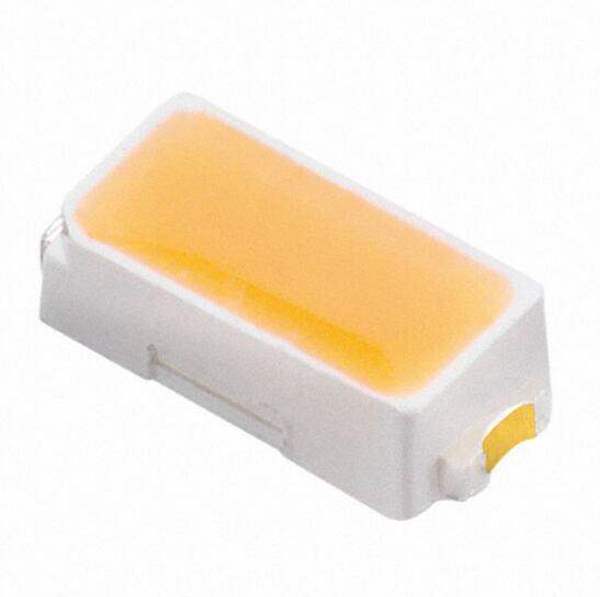

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Optoelectronics LED White Lighting
Series WL-SWTP
Product Status Active
Color White, Cool
CCT (K) 6000K
Flux @ 25°C, Current - Test 8lm (Typ)
Voltage - Forward (Vf) (Typ) 3V
Lumens/Watt @ Current - Test 133 lm/W
CRI (Color Rendering Index) 85 (Typ)
Current - Max 40mA
Viewing Angle 120°
Win Source Part Number WS1206076-158301260
Ultra Librarian 3D Model Ultra Librarian 158301260 CAD Model

Description

The standard deliveries include values in the range and limitation as defined in the Electrical & Optical Properties specified in the datasheet. On each reel, only one bin is sorted and taped. The bin is defined on intensity, chromaticity coordinate or wavelength and forward voltage. In order to ensure highest availability, the reel binning of standard deliveries can vary. A single bin cannot be ordered. Please contact us in advance, if you need a particular bin sorting before placing your order to clarify the lead time, MOQ and pricing.
