Products specifications

Category Capacitors - Film Capacitors
Mfr WIMA
Package Bulk
Product Status Active
Capacitance 10000 pF
Tolerance ±5%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.283" L x 0.118" W (7.20mm x 3.00mm)
Height - Seated (Max) 0.295" (7.50mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications Automotive; High Frequency, Switching
Ratings AEC-Q200
Standard Package 5,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 885084-MKP2C021001B00JSSD
Ultra Librarian 3D Model Ultra Librarian MKP2C021001B00JSSD CAD Model

Description

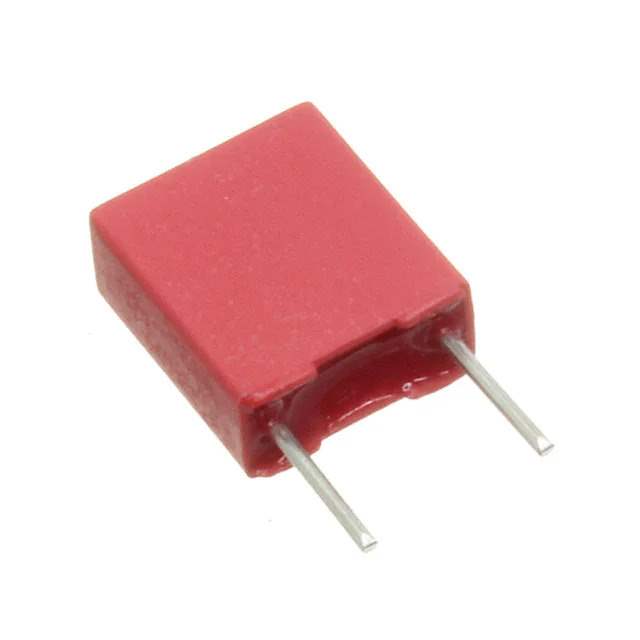

The WIMA Film Capacitor is a high-quality component designed for automotive and high-frequency applications.

  • Capacitance: 10,000 pF
  • Tolerance: ±5%
  • Voltage Rating (AC): 40V
  • Voltage Rating (DC): 63V
  • Material: Polypropylene (PP) with metallized layers
  • Mounting Type: Through Hole
  • Package/Case: Radial
  • Operating Temperature: -55°C to 100°C
  • Package Quantity: 5,000
