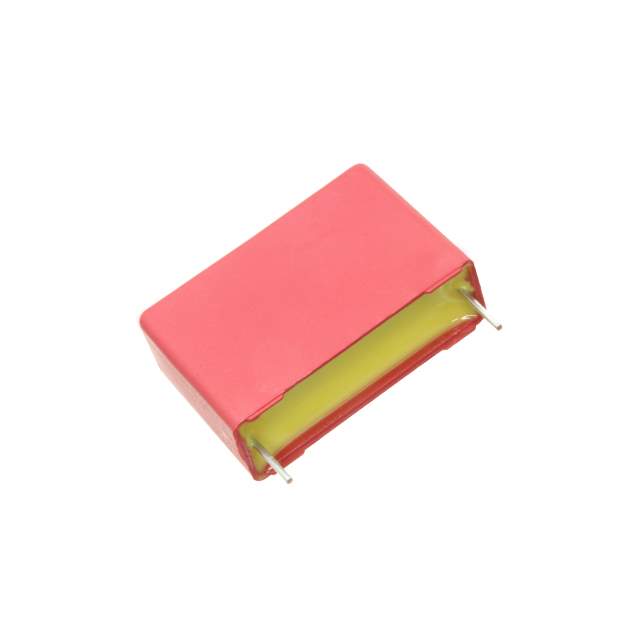

MKP1V021005F00KSSD Real Image
Same model may have multiple batches, images only for reference.

MKP1V021005F00KSSD

Part No MKP1V021005F00KSSD
Manufacturer WIMA
Catalog Film Capacitors
Description CAP FILM 10000PF 10% 2.5KVDC RAD / 10000 pF Film Capacitor 700V 2500V (2.5kV) Polypropylene (PP), Metallized Radial
Datasheet
MKP1V021005F00KSSD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr WIMA
Package Bulk
Capacitance 10000 pF
Tolerance ±10%
Voltage Rating - AC 700V
Voltage Rating - DC 2500V (2.5kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.043" L x 0.335" W (26.50mm x 8.50mm)
Height - Seated (Max) 0.728" (18.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications High Pulse, DV/DT
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.25.0070
Other Names 1928-1493
Standard Package 500
Win Source Part Number 1145294-MKP1V021005F00KSSD
Ultra Librarian 3D Model Ultra Librarian MKP1V021005F00KSSD CAD Model

Description

The 1145294-MKP1V021005F00KSSD is a film capacitor manufactured by WIMA.

  • Capacitance: 10000 pF
  • Voltage Rating: 700V AC and 2500V DC
  • Application: High pulse and DV/DT applications
  • Package: Bulk
  • Standard Package: 500
