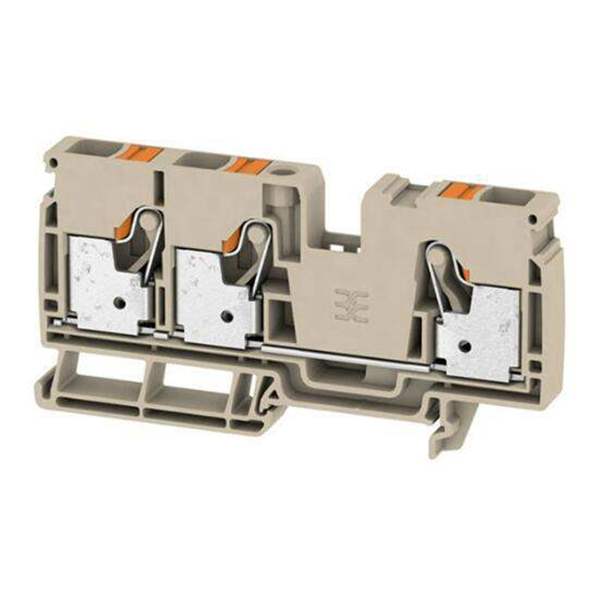

2490520000Weidmüller
Same model may have multiple batches, images only for reference.

2490520000

Part No 2490520000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description FEED-THROUGH TERMINAL BLOCK, PUS
Datasheet
2490520000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Series A
Package Box
Product Status Active
Type Feed Through
Number of Positions 3
Terminal - Width 10.0mm
Termination Style Push In
Current - IEC 57 A
Voltage - IEC 1000V
Win Source Part Number WS1207296-2490520000
Ultra Librarian 3D Model Ultra Librarian 2490520000 CAD Model

Description

To feed through power, signal, and data is the classical requirement in electrical engineering and panel building. The insulating material, the connection system and the design of the terminal blocks are the differentiating features. A feed-through terminal block is suitable for joining and/or connecting one or more conductors. They could have one or more connection levels that are on the same potential or insulated against one another.
