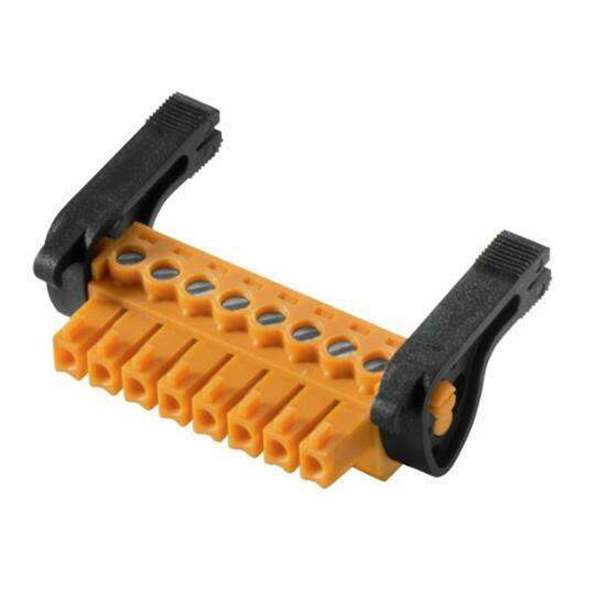

2442310000 Weidmüller
Same model may have multiple batches, images only for reference.

2442310000

Part No 2442310000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description CONN PCB PLUGIN FEM 4POLE 3.81MM
Datasheet
2442310000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Series Omnimate BC
Package Bulk
Product Status Active
Type Plug, Female Sockets
Pitch 0.150" (3.81mm)
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Mounting Type Free Hanging (In-Line)
Current - IEC 17.5A
Voltage - IEC 320 V
Win Source Part Number WS1207266-2442310000
Ultra Librarian 3D Model Ultra Librarian 2442310000 CAD Model

Description

Female socket connectors with clamping-yoke screw system for connecting wires. Three wire-outlet directions are available and provide flexible connection-level design options:
• 180°   wire parallel to plugging direction
• 90°     wire perpendicular and above plugging direction
• 270°   wire perpendicular and below plugging direction
