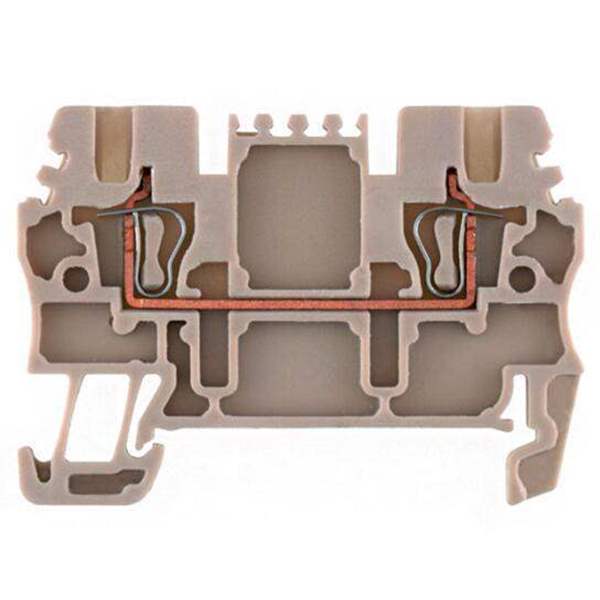

1775480000 Weidmüller
Same model may have multiple batches, images only for reference.

1775480000

Part No 1775480000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description CONN TERM BLK FEED THRU 16-30AWG
Datasheet
1775480000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Series Z
Package Bulk
Product Status Active
Type Feed Through
Termination Style Push In, Spring
Current - IEC 17.5 A
Voltage - IEC 500V
Current - UL 15 A
Win Source Part Number WS1206446-1775480000
Ultra Librarian 3D Model Ultra Librarian 1775480000 CAD Model

Description

Spring connection with tension clamp Technology Tension clamp technology is a universal contact system for all common conductor connection types. Its fantastic level of flexibility makes the tension clamp a profitable alternative connection.
