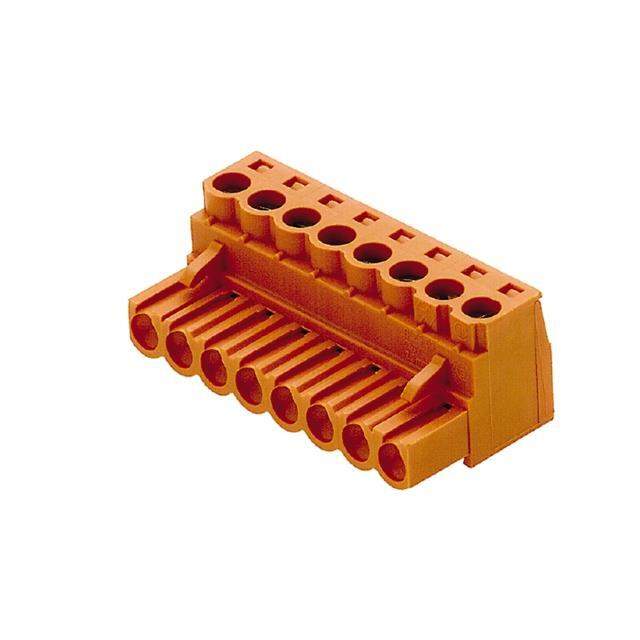

1527510000 Real Image
Same model may have multiple batches, images only for reference.

1527510000

Part No 1527510000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description Conn Terminal Block SKT 13 POS 5.08mm Screw RA Cable Mount 15A Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Terminal Block
Contact Material Copper, Tin
Contact Plating Tin
Current 15 A
Current Rating 19 A
Flammability Rating UL94 V-0
Height 15.2 mm
Housing Color Black
Housing Material Plastic
Lead Free Lead Free
Length 66 mm
Mount Cable, Free Hanging
Number of Circuits 13
Number of Contacts 13
Number of Levels 1
Number of Positions 13
Number of Positions Per Level 13
Number of Rows 1
Orientation Right Angle
Packaging Bulk
Pitch 5.08 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Screw
Voltage 300 V
Voltage Rating 400 V
Width 20 mm
Wire/Cable Gauge 26 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 1213755-1527510000
Categories Terminal Blocks
Manufacturer Weidmuller
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1527510000 CAD Model

Description

The 1527510000 is a terminal block connector designed for use in various applications. 1527510000 is the product, and Weidmuller is the manufacturer.

  • Positions: 13
  • Levels: 1
  • Pitch: 5.08 mm
  • Current Rating: 19 A
  • Voltage Rating: 400 V
  • Termination: Screw
  • Material: Copper
  • Plating: Tin
  • Length: 66 mm
  • Width: 20 mm
  • Height: 15.2 mm
  • Orientation: Right-Angle
  • Mounting: Cable, Free Hanging
  • Packaging: Bulk
  • Lead-Free: Yes
  • RoHS: Compliant
