Same model may have multiple batches, images only for reference.

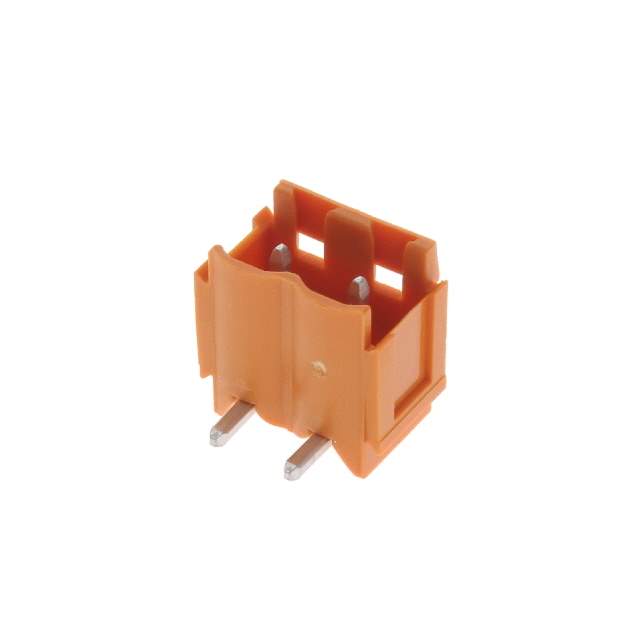

1510360000 Real Image
Same model may have multiple batches, images only for reference.

1510360000

Part No 1510360000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS 90DEG 5.08MM / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SL
Package Bulk
Product Status Obsolete
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 18A
Voltage - IEC 400 V
Current - UL 15 A
Voltage - UL 300 V
Color Orange
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Ingress Protection IP20
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.330" (8.38mm)
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352050-1510360000
Ultra Librarian 3D Model Ultra Librarian 1510360000 CAD Model

Description

The Weidmüller Omnimate SL is a header, male pins, shrouded (4 side) type of terminal block connector.

  • Number of Positions Per Level: 2
  • Number of Levels: 2
  • Pitch: 0.200" (5.08mm)
  • Header Orientation: 90°, Right Angle
  • Current Rating (IEC): 18A
  • Current Rating (UL): 15A
  • Voltage Rating (IEC): 400V
  • Voltage Rating (UL): 300V
  • Packaging: Bulk
  • Ingress Protection: IP20
  • Material Flammability Rating: UL94 V-0
  • Status: Obsolete
  • Standard Package: 100
