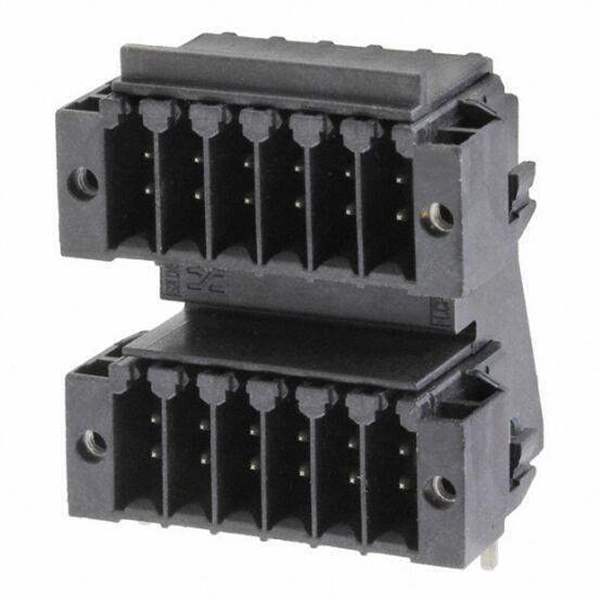

1357940000 Weidmüller
Same model may have multiple batches, images only for reference.

1357940000

Part No 1357940000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 24POS 90DEG 3.5MM
Datasheet
1357940000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Series Omnimate S2C
Package Bulk
Product Status Active
Type Header, Male Pins, Shrouded (4 Side), Stacked
Number of Positions 24
Positions Per Level 12, 12
Number of Levels 2, 2
Pitch 0.138" (3.50mm)
Mounting Type Through Hole
Win Source Part Number WS1205891-1357940000
Ultra Librarian 3D Model Ultra Librarian 1357940000 CAD Model

Description

The new benchmark for component density: the virtual 0.875mm pitch - for 1mm² I/O connections The only 4-row double level male connectors for standard IP20 sensor interfaces with 3.5 pitch The S2L in a double pack - a standard has surpassed itself:
• Each 3.5mm wide, 4 I/O contacts for 1mm² connection cross-section
• Force-fit enclosure geometry guarantees maximum stability
• Solder flange eliminates the need for a screw fastening
