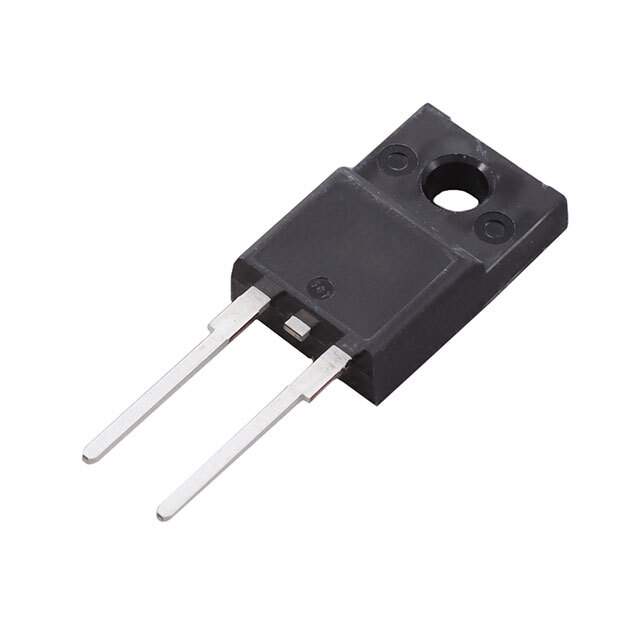

Same model may have multiple batches, images only for reference.

NXPSC10650X6Q

Name: NXPSC10650X6Q
Brand: WeEn Semiconductors
SKU: 1114065
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NXPSC10650X6Q
Manufacturer	WeEn Semiconductors
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 650V 10A TO220F / Diode Silicon Carbide Schottky 650 V 10A Through Hole TO-220F
Datasheet	NXPSC10650X6Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	WeEn Semiconductors
Package	Bulk
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	650 V
Current - Average Rectified (Io)	10A
Voltage - Forward (Vf) (Max) @ If	1.7 V @ 10 A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0 ns
Current - Reverse Leakage @ Vr	250 µA @ 650 V
Capacitance @ Vr, F	300pF @ 1V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-220-2 Full Pack, Isolated Tab
Supplier Device Package	TO-220F
Operating Temperature - Junction	175°C (Max)
Base Product Number	NXPSC
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	934072089127
Standard Package	1,000
Win Source Part Number	1114065-NXPSC10650X6Q
Ultra Librarian 3D Model	Ultra Librarian NXPSC10650X6Q CAD Model

Description

The NXPSC10650X6Q is a silicon carbide Schottky diode with a maximum reverse voltage of 650V and an average rectified current of 10A.

Maximum Reverse Voltage: 650V
Average Rectified Current: 10A
Forward Voltage: 1.7V @ 10A
Reverse Recovery Time: 0ns
Capacitance: 300pF @ 1V and 1MHz
Operating Temperature (Max): 175°C
Mounting Type: Through-hole
Package/Case: TO-220-2 full pack, isolated tab
Supplier Device Package: TO-220F
HTSUS: 8541.10.0080
Manufacturer: WeEn Semiconductors
