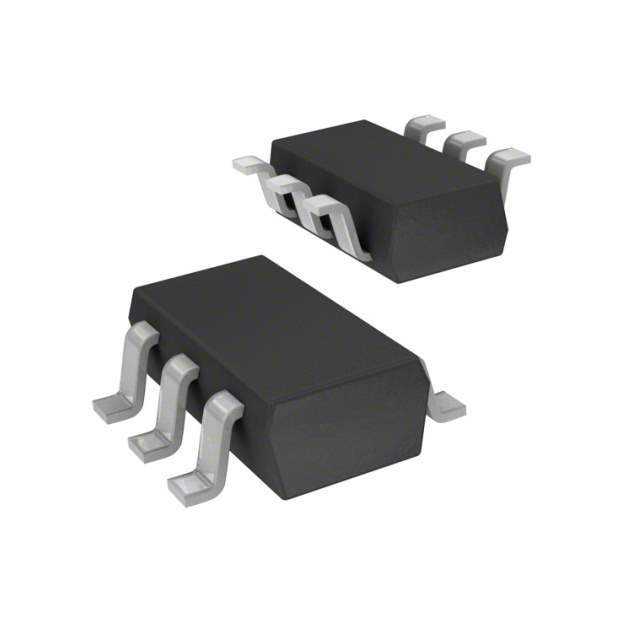

ESDALD05UD4X WeEn Semiconductors
Same model may have multiple batches, images only for reference.

ESDALD05UD4X

Part No ESDALD05UD4X
Manufacturer WeEn Semiconductors
Catalog TVS - Diodes
Description THE ESDALD05UD4 IS DESIGNED TO P
Datasheet
ESDALD05UD4X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306784-ESDALD05UD4X
Category Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Mfr WeEn Semiconductors
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Steering (Rail to Rail)
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 16V
Current - Peak Pulse (10/1000µs) 5.5A (8/20µs)
Current - Peak Pulse (10/1000µs) 88W
Ultra Librarian 3D Model Ultra Librarian ESDALD05UD4X CAD Model

Description

  • Peak pulse power 88W @ 8/20μs waveform
  • Protects four I/O lines and one VCC line
  • IEC 61000-4-2 (ESD) ±15kV(air), ±8kV(contact)
  • IEC 61000-4-5 (Lightning) 5.5A (8/20μs)
  • Low capacitance
  • Low leakage current
  • Low clamping voltage
  • Meet MSL level1
  • Halogen free and RoHS compliant
