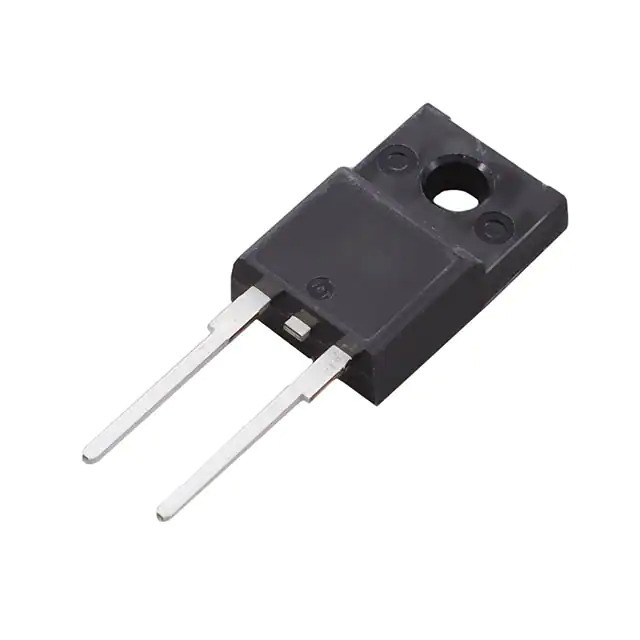

BYC30X-600PSQ WeEn Semiconductors
Same model may have multiple batches, images only for reference.

BYC30X-600PSQ

Part No BYC30X-600PSQ
Manufacturer WeEn Semiconductors
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 30A TO220F
Datasheet
BYC30X-600PSQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr WeEn Semiconductors
Series -
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 2.75 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 45 ns
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack, Isolated Tab
Supplier Device Package TO-220F
Operating Temperature - Junction 175°C
Base Product Number BYC30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366871-BYC30X-600PSQ
Ultra Librarian 3D Model Ultra Librarian BYC30X-600PSQ CAD Model

Description

The BYC30X-600PSQ is a rectifier diode designed for single diode rectification in discrete semiconductor products.

  • Maximum DC Reverse Voltage: 600V
  • Average Rectified Current: 30A
  • Forward Voltage: 2.75V @ 30A
  • Reverse Recovery Time: 45ns
  • Mounting Type: Through Hole
  • Package: TO-220-2 Full Pack
  • Tab Feature: Isolated
  • Product Status: Active
  • Manufacturer: WeEn Semiconductors
  • Series: BYC30
  • Operating Temperature: 175°C
