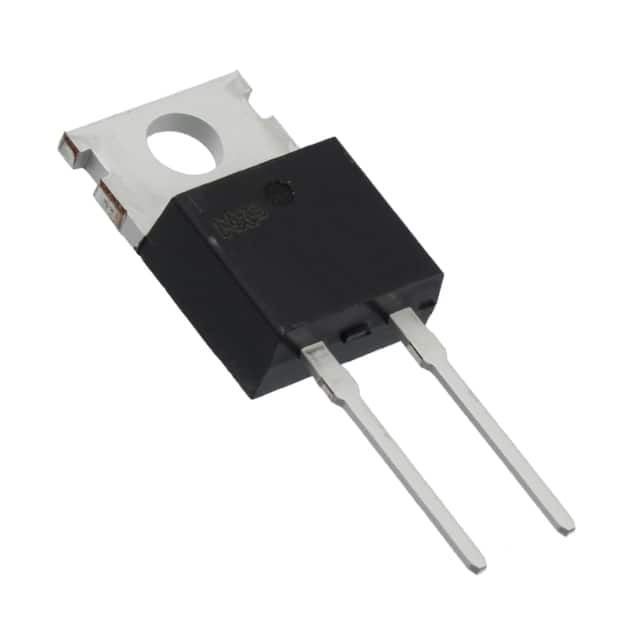

Same model may have multiple batches, images only for reference.

BYC30-1200PQ

Name: BYC30-1200PQ
Brand: WeEn Semiconductors
SKU: 865071
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BYC30-1200PQ
Manufacturer	WeEn Semiconductors
Catalog	Diodes, Rectifiers - Single
Description	DIODE GEN PURP 1.2KV 30A TO220AC / Diode 1200 V 30A Through Hole TO-220AC
Datasheet	BYC30-1200PQ Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	WeEn Semiconductors
Package	Tube
Product Status	Active
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	3.3 V @ 30 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	65 ns
Current - Reverse Leakage @ Vr	250 µA @ 1200 V
Mounting Type	Through Hole
Package / Case	TO-220-2
Supplier Device Package	TO-220AC
Operating Temperature - Junction	175°C (Max)
Base Product Number	BYC30
Standard Package	1,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	865071-BYC30-1200PQ
Ultra Librarian 3D Model	Ultra Librarian BYC30-1200PQ CAD Model

Alternative Products

Description

The 865071-BYC30-1200PQ is a fast recovery diode with a voltage rating of 1200 V and an average rectified current of 30A.

Forward Voltage: 3.3V @ 30A
Reverse Recovery Time: 65 ns
Package: TO-220-2
Mounting: Through hole
Series: Standard technology
Package: Tube
Quantity: 1,000 pcs
Operating Temperature: Up to 175°C
Manufacturer: WeEn Semiconductors
Product Status: Active
