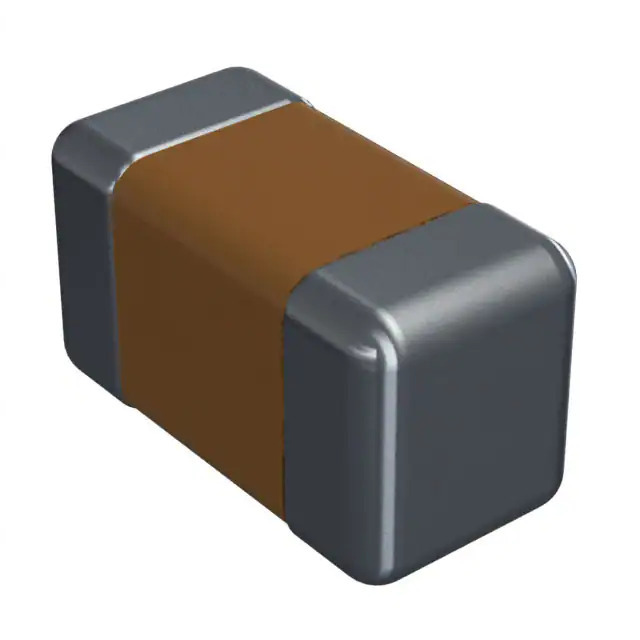

Same model may have multiple batches, images only for reference.
RF15N2R7A500CT Walsin Technology Corporation
Same model may have multiple batches, images only for reference.

RF15N2R7A500CT

Part No RF15N2R7A500CT
Manufacturer Walsin Technology Corporation
Catalog Ceramic Capacitors
Description CAP CER 2.7PF 50V C0G/NP0 0402 / 2.7 pF ±0.05pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Datasheet
RF15N2R7A500CT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Walsin Technology Corporation
Series RF
Package Tape & Reel
Product Status Active
Capacitance 2.7 pF
Tolerance ±0.05pF
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Q, Low Loss, Ultra Low ESR
Ratings -
Applications RF, Microwave, High Frequency
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) -
Thickness (Max) 0.022" (0.55mm)
Lead Spacing -
Lead Style -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1359060-RF15N2R7A500CT
Ultra Librarian 3D Model Ultra Librarian RF15N2R7A500CT CAD Model

Description

The 1359060-RF15N2R7A500CT is a ceramic capacitor designed for RF, microwave, and high-frequency applications, manufactured by Walsin Technology Corporation.

  • Manufacturer: Walsin Technology Corporation
  • Series: RF
  • Application: RF, Microwave, High Frequency
  • Features: High Q, Low Loss, Ultra Low ESR
  • Capacitance: 2.7 pF
  • Voltage Rating: 50V
  • Tolerance: ±0.05pF
  • Operating Temperature: -55°C to 125°C
  • Package / Case: 0402 (1005 Metric)
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • REACH Status: REACH unaffected
  • ECCN: EAR99
  • Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height - Seated (Max): 0.022" (0.55mm)
