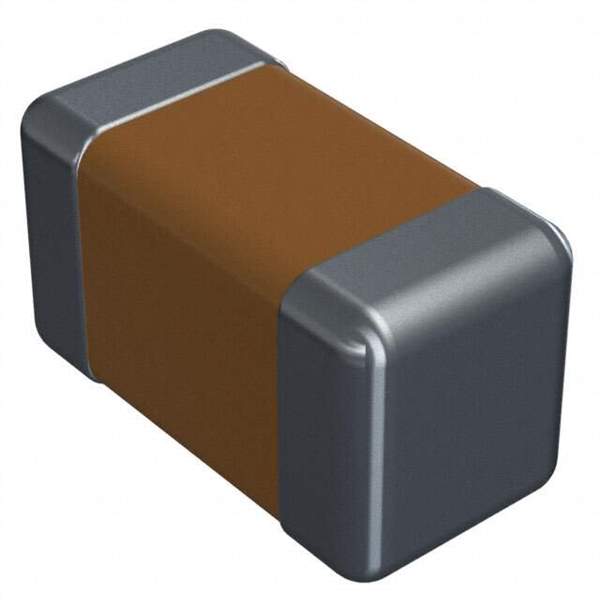

Same model may have multiple batches, images only for reference.

0603N681J500CT

Name: 0603N681J500CT
Brand: Walsin Technology Corporation
SKU: 1329776
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0603N681J500CT
Manufacturer	Walsin Technology Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 680PF 50V C0G/NP0 0603 / 680 pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Datasheet	0603N681J500CT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Ceramic Capacitors
Manufacturer	Walsin Technology Corporation
Packaging	Reel - TR
Capacitance	680 pF
Tolerance	±5%
Voltage - Rated	50V
Temperature Coefficient	C0G, NP0
Temperature Range - Operating	-55°C ~ 125°C
Applications	General Purpose
Mounting	Surface Mount, MLCC
Case / Package	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Max)	0.034" (0.87mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Other Part Number	1292-1543-6,1292-1543-1,1292-1543-2
Standard Package	4,000
Win Source Part Number	1329776-0603N681J500CT
Ultra Librarian 3D Model	Ultra Librarian 0603N681J500CT CAD Model

Alternative Products

Description

This Walsin Technology Corporation ceramic capacitor is a surface-mountable electronic component that has a capacitance of 680 pF and a voltage rating of 50V.

Mounting Type: surface-mountable
Capacitance: 680 pF
Voltage Rating: 50V
Material: ceramic
Temperature Coefficient: C0G, NP0
Tolerance: ±5%
Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
Packaging: reel
Standard Pieces: 4,000
Leads: none
Technology: surface mount
Operating Temperature: -55°C to 125°C
ROHS3 Compliant: compliant
