Same model may have multiple batches, images only for reference.

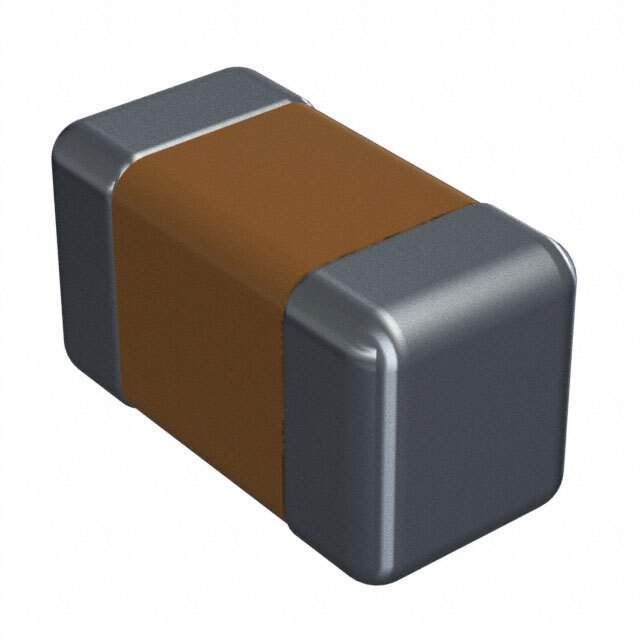

0402N180G500CT Real Image
Same model may have multiple batches, images only for reference.

0402N180G500CT

Part No 0402N180G500CT
Manufacturer Walsin Technology Corporation
Catalog Ceramic Capacitors
Description CAP CER 18PF 50V C0G/NP0 0402 / 18 pF ±2% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Datasheet
0402N180G500CT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Walsin Technology Corporation
Package Tape & Reel
Capacitance 18 pF
Tolerance ±2%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 1292-1264-2,1292-1264-1,1292-1264-6
Standard Package 10,000
Win Source Part Number 1033659-0402N180G500CT
Ultra Librarian 3D Model Ultra Librarian 0402N180G500CT CAD Model

Description

The 0402N180G500CT is a ceramic capacitor with a capacitance of 18pF and a voltage rating of 50V.

  • Capacitance: 18pF
  • Voltage Rating: 50V
  • Tolerance: ±2%
  • Temperature Coefficient: C0G, NP0
  • Manufacturer: Walsin Technology Corporation
  • Win Source Part Number: 1033659-0402N180G500CT
  • Mounting Type: Surface mount, MLCC
  • Package/Case: 0402 (1005 Metric)
  • Temperature Range: -55°C to 125°C
  • Thickness: 0.022" (0.55mm)
