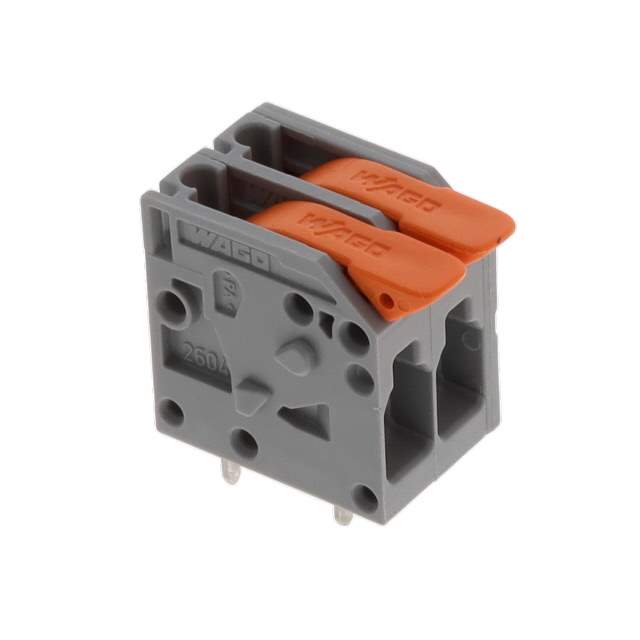

2604-1102 Real Image
Same model may have multiple batches, images only for reference.

2604-1102

Part No 2604-1102
Manufacturer WAGO Corporation
Catalog Terminal Blocks
Description PCB TERMINAL BLOCK; LEVER; 4 MM; / 2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr WAGO Corporation
Series 2604
Package Box
Number of Levels 1
Positions Per Level 2
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 20 A
Voltage 300 V
Wire Gauge 12-24 AWG
Mounting Type Through Hole
Wire Termination Screwless - Leg Spring, Push-In Spring
Features Lever Actuated
Color Gray
Temperature Range - Operating -60°C ~ 105°C
Housing Material Polyamide (PA66) , Nylon 6/6
Contact Material - Plating Electrolytic Copper - Tin Plated
Clamp Material - Plating Steel - Nickel Plated
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1340940-2604-1102
Ultra Librarian 3D Model Ultra Librarian 2604-1102 CAD Model

Description

This lever actuated terminal block is a perfect fit for wire to board connections. The manufacturer of this product is not provided.

  • Connection Type: Wire to Board
  • Pitch: 0.197" (5.00mm)
  • Positions per Level: 2
  • Wire Gauge: 12-24 AWG
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Contact Material: Electrolytic Copper with Tin Plating
  • Voltage Rating: 300 V
  • Current Rating: 20 A
  • Wire Termination: Screwless Leg Spring, Push-In Spring
  • Mounting Type: Through Hole
  • Operating Temperature: -60°C to 105°C
