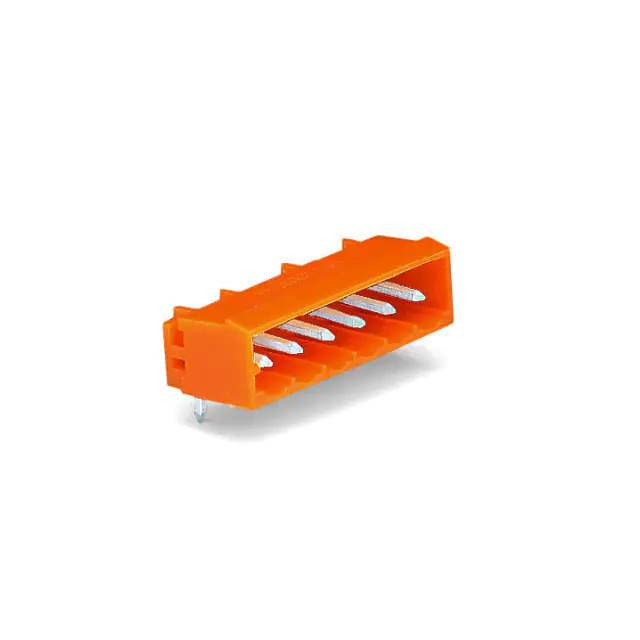

231-533/001-000

Part No 231-533/001-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 1.0 X 1.0 MM SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI Classic
Package Box
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 16A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 600 V
Color Orange
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.150" (3.81mm)
Insulation Height 0.331" (8.40mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 7997-231-533/001-000
Ultra Librarian 3D Model Ultra Librarian 231-533/001-000 CAD Model

Description

231-533/001-000 Electronic Component

The 231-533/001-000 is designed to meet the requirements of cutting-edge projects, offering a reliable solution with unmatched versatility in various applications.

  • Applications:
    • Automotive electronics
    • Data acquisition systems
    • Smart grid technologies
    • Advanced robotics
  • Features and Benefits:
    • Robust and durable construction
    • High compatibility across systems
    • Low power consumption
    • Customizable to fit specific requirements

For projects that require a flexible and dependable component, the 231-533/001-000 is an excellent choice.
