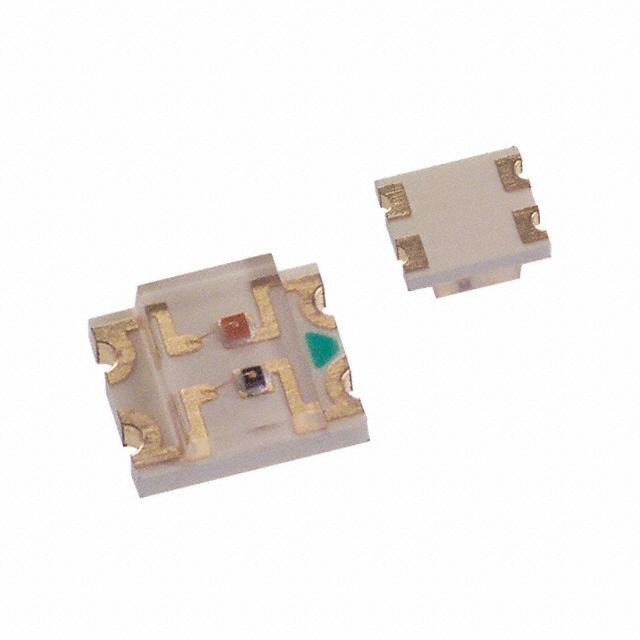

Same model may have multiple batches, images only for reference.
CMD15-22VRVGC/TR8 Visual Communications Company - VCC
Same model may have multiple batches, images only for reference.

CMD15-22VRVGC/TR8

Part No CMD15-22VRVGC/TR8
Manufacturer Visual Communications Company - VCC
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR 4SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Visual Communications Company - VCC
Packaging Reel - TR
Status Obsolete(EOL)
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 10mcd Green, 20mcd Red
Lens Style/Size Rectangle with Flat Top, 2.00mm x 1.50mm
Forward Voltage 2.1V Green, 2.8V Red
Current - Test 20mA Green, 20mA Red
Mounting SMD (SMT)
Wavelength - Peak 570nm Green, 640nm Red
Case / Package 1206
Height (Max) 1.10mm
Win Source Part Number 1001526-CMD15-22VRVGC/TR8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMD15-22VRVGC/TR8 CAD Model

Description

The CMD15-22VRVGC/TR8 optoelectronic device is a rectangular LED that comes equipped with a green and red color.

  • Green LED Forward Voltage: 2.1V
  • Red LED Forward Voltage: 2.8V
  • Viewing Angle: Not specified
  • Green LED Millicandela Rating: 10mcd
  • Red LED Millicandela Rating: 20mcd
  • Package: Surface-mount device (SMD)
  • Test Current (Green): 20mA
  • Test Current (Red): 20mA
