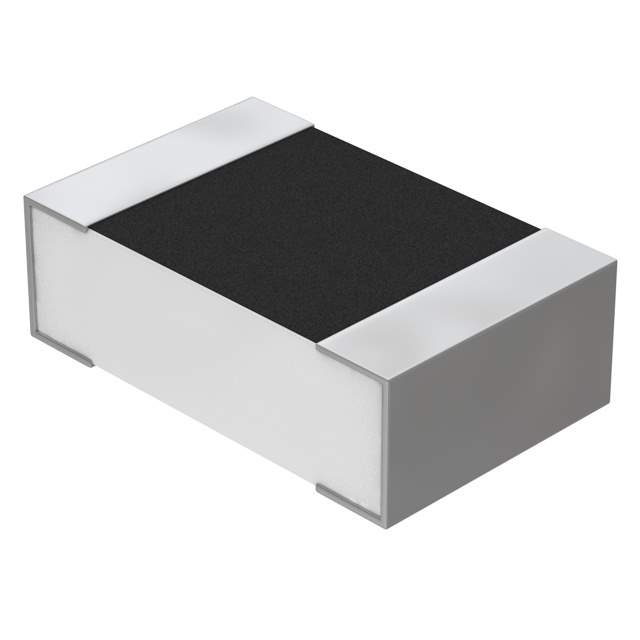

Y16297K20000B9R Real Image
Same model may have multiple batches, images only for reference.

Y16297K20000B9R

Part No Y16297K20000B9R
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 7.2K OHM 0.1% 1/10W 0805 / 7.2 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VFCP
Package Tape & Reel
Resistance 7.2 kOhms
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Metal Foil
Features Anti-Sulfur, Moisture Resistant, Non-Inductive
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.01mm x 1.24mm)
Height - Seated (Max) 0.025" (0.64mm)
Number of Terminations 2
Standard Package 2,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338168-Y16297K20000B9R
Ultra Librarian 3D Model Ultra Librarian Y16297K20000B9R CAD Model

Description

The Vishay VFCP series chip resistor is an anti-sulfur, moisture-resistant, non-inductive device that comes in a 0805 (2012 Metric) package.

  • Resistance: 7.2 kOhms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±0.2ppm/°C
  • Composition: Metal Foil
  • Terminations: Two
  • Power Rating: 0.1W
  • Mounting: Surface Mounting
  • Operating Temperature Range: -55°C to 150°C
  • Height: 0.025" (0.64mm) when seated
  • Package: Tape and Reel
  • Standard Package: 2,500
  • Manufacturer: Vishay Foil Resistors (Division of Vishay Precision Group)
  • Popularity: Low
