Same model may have multiple batches, images only for reference.

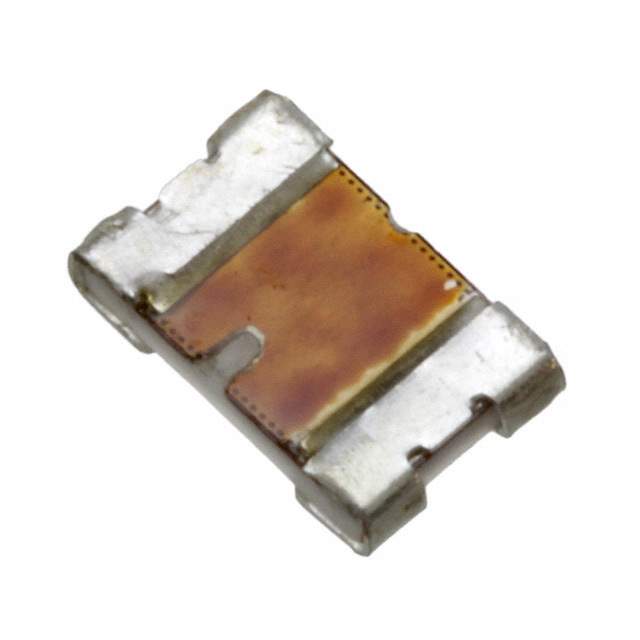

Y11201R00000D9W Real Image
Same model may have multiple batches, images only for reference.

Y11201R00000D9W

Part No Y11201R00000D9W
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 1 OHM 0.5% 1/4W 1610 / 1 Ohms ±0.5% 0.25W, 1/4W Chip Resistor Nonstandard Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VCS1610
Package Tray
Resistance 1 Ohms
Tolerance ±0.5%
Power (Watts) 0.25W, 1/4W
Composition Metal Foil
Features Current Sense, Moisture Resistant, Non-Inductive
Temperature Coefficient ±2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case Nonstandard
Size / Dimension 0.160" L x 0.100" W (4.06mm x 2.54mm)
Height - Seated (Max) 0.040" (1.02mm)
Number of Terminations 4
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1340041-Y11201R00000D9W
Ultra Librarian 3D Model Ultra Librarian Y11201R00000D9W CAD Model

Description

The VCS1610 series chip resistor is a high-quality current sense resistor that is moisture-resistant and non-inductive.

  • Composition: Metal Foil
  • Tolerance: ±0.5%
  • Power (Watts): 0.25W
  • Size / Dimension: 0.160" L x 0.100" W (4.06mm x 2.54mm)
  • Height - Seated (Max): 0.040" (1.02mm)
  • Number of Terminations: 4
  • Resistance: 1 Ohm
  • Temperature Coefficient: ±2ppm/°C
  • Operating Temperature: -55°C ~ 150°C
  • Packaging: Tray
  • Standard Package: 50
  • ECCN: EAR99
  • HTSUS: 8533.21.0030
  • Failure Rate: Not Specified
