Same model may have multiple batches, images only for reference.

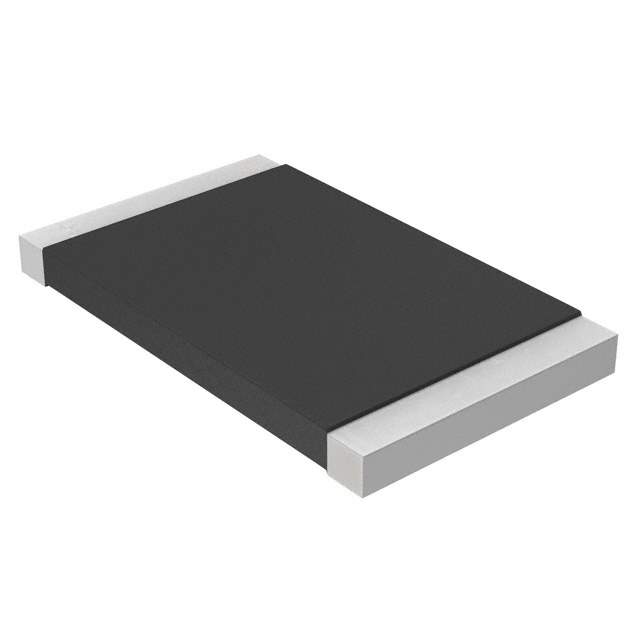

WSL2816R0120FEH Real Image
Same model may have multiple batches, images only for reference.

WSL2816R0120FEH

Part No WSL2816R0120FEH
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.012 OHM 1% 2W 2816 / Res Metal Strip 2816 0.012 Ohm 1% 2W ±75ppm/°C Sulfur Resistant Pad SMD Automotive T/R
Datasheet
WSL2816R0120FEH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Dale
Series WSL
Packaging Reel package
Resistance (Ohms) 0.012
Tolerance ±1%
Power (Watts) 2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Operating Temperature Range -65°C ~ 170°C
Package 2816
Manufacturer Package 2816
Dimension 0.280" L x 0.165" W (7.10mm x 4.20mm)
Height - Seated (Maximum) 0.035" (0.89mm)
Number of Terminations 2
Win Source Part Number 799359-WSL2816R0120FEH
Popularity Medium
Supply and Demand Status Balance
Family Name WSL
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian WSL2816R0120FEH CAD Model

Description

The Vishay Dale WSL2816R0120FEH is a 2W metal element resistor with a resistance of 0.012 ohms and a tolerance of ±1%.

  • Series: WSL
  • Packaging: Reel
  • Compliance: Automotive AEC-Q200, Moisture-Resistant, Pulse-Withstanding, RoHS
  • Operating Temperature Range: -65°C to 170°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
