Same model may have multiple batches, images only for reference.

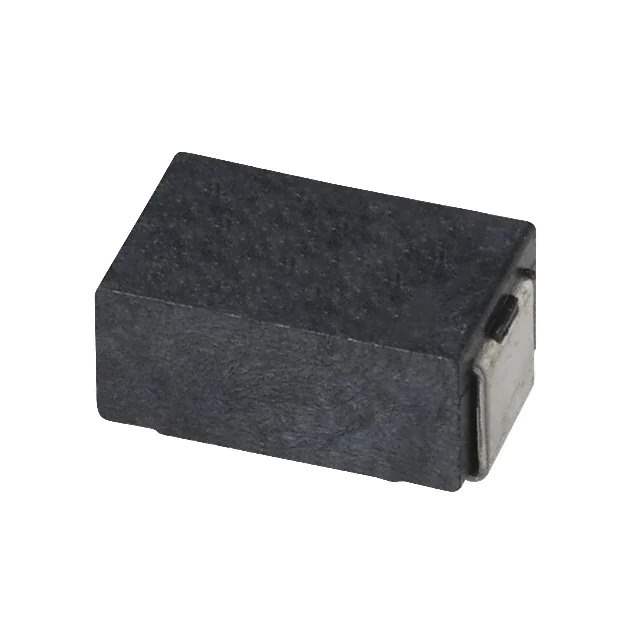

WSC25151R000JEA Real Image
Same model may have multiple batches, images only for reference.

WSC25151R000JEA

Part No WSC25151R000JEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 1 OHM 5% 1W 2515
Datasheet
WSC25151R000JEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay
Series WSC
Package Tape & Reel
Product Status Active
Resistance 1 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Wirewound
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Package / Case 2515 J-Lead
Supplier Device Package 2515
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.150" W (6.35mm x 3.81mm)
Height - Seated (Max) 0.125" (3.17mm)
Number of Terminations 2
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 403171-WSC25151R000JEA
Ultra Librarian 3D Model Ultra Librarian WSC25151R000JEA CAD Model

Description

The WSC25151R000JEA is a wirewound chip resistor designed for various applications requiring high power dissipation.

  • Resistance: 1 Ohms
  • Power Rating: 1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Operating Temperatures: -65°C to 275°C
  • Composition: wirewound
  • Terminations: 2
  • Package: 2515 J-Lead
  • Packaging: tape and reel
  • Quantity: 2,000 pieces
  • AEC-Q200: rated
