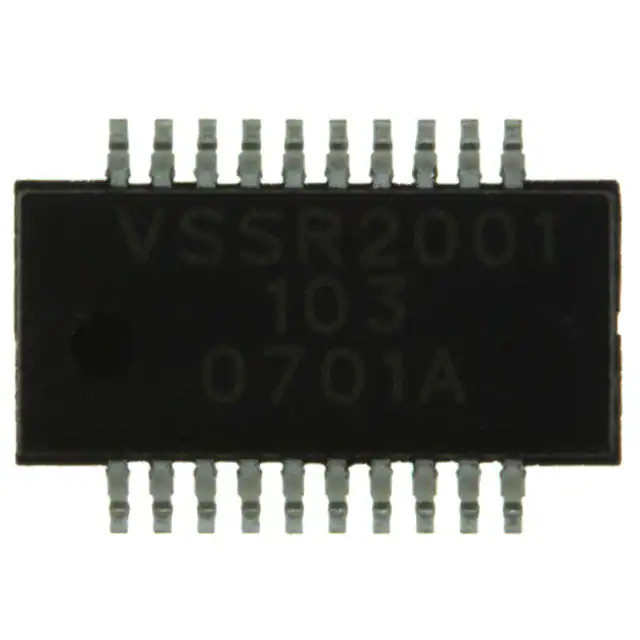

VSSR2001103JUF Vishay
Same model may have multiple batches, images only for reference.

VSSR2001103JUF

Part No VSSR2001103JUF
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES ARRAY 19 RES 10K OHM 20SSOP
Datasheet
VSSR2001103JUF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Vishay Dale Thin Film
Series VSSR
Package Tube
Product Status Active
Circuit Type Bussed
Resistance (Ohms) 10k
Tolerance ±5%
Number of Resistors 19
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 20
Power Per Element 100mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications -
Mounting Type Surface Mount
Package / Case 20-SSOP (0.154", 3.90mm Width)
Supplier Device Package 20-SSOP
Size / Dimension 0.341" L x 0.154" W (8.66mm x 3.91mm)
Height - Seated (Max) 0.069" (1.76mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0010
Win Source Part Number 1380272-VSSR2001103JUF
Ultra Librarian 3D Model Ultra Librarian VSSR2001103JUF CAD Model

Description

The Vishay Dale Thin Film VSSR resistor network is a surface mount device with a resistance of 10k ohms.

  • Temperature Range: -55°C to 125°C
  • Tolerance: ±5%
  • Package Type: 20-SSOP (0.154", 3.90mm Width)
  • Number of Resistors: 19
  • Size/Dimension: 0.341" L x 0.154" W (8.66mm x 3.91mm)
  • Height Seated (Max): 0.069" (1.76mm)
  • Product Status: Active
  • Series: Vishay Dale Thin Film
  • REACH: Unaffected
  • ECCN: EAR99
  • Temperature Coefficient: ±100ppm/°C
