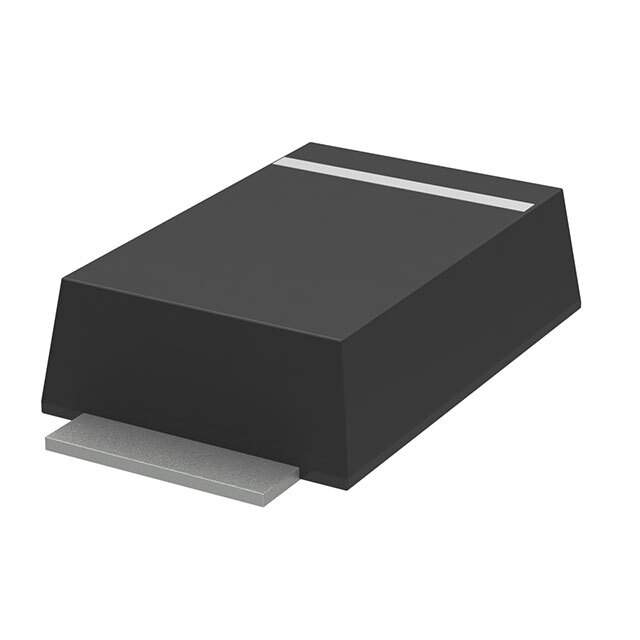

VSSAF5M10-M3/H Real Image
Same model may have multiple batches, images only for reference.

VSSAF5M10-M3/H

Part No VSSAF5M10-M3/H
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 5A DO221AC / Diode Schottky 100 V 5A Surface Mount DO-221AC (SlimSMA)
Datasheet
VSSAF5M10-M3/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 790 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 400 µA @ 100 V
Capacitance @ Vr, F 470pF @ 4V, 1MHz
Mounting Surface Mount
Case / Package DO-221AC, SMA Flat Leads
Supplier Device Package DO-221AC (SlimSMA)
Operating Temperature - Junction -40°C ~ 175°C
Base Product Number SAF5M10
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number VSSAF5M10-M3/H-ND,VSSAF5M10-M3/HGITR,VSSAF5M10-M3/HGICT,VSSAF5M10-M3/HGIDKR
Standard Package 3,500
Win Source Part Number 1324034-VSSAF5M10-M3/H
Ultra Librarian 3D Model Ultra Librarian VSSAF5M10-M3/H CAD Model

Description

The Vishay VSSAF5M10-M3/H Schottky diode is a fast recovery diode with a voltage rating of 100V and an average rectified current of 5A.

  • Voltage Rating: 100V
  • Average Rectified Current: 5A
  • Forward Voltage: 790 mV @ 5A
  • Reverse Leakage Current: 400 μA @ 100V
  • Capacitance: 470pF @ 4V, 1MHz
  • Mounting: Surface Mount
  • Operating Temperature Range: -40°C to 175°C
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
  • Package: DO-221AC (SlimSMA)
