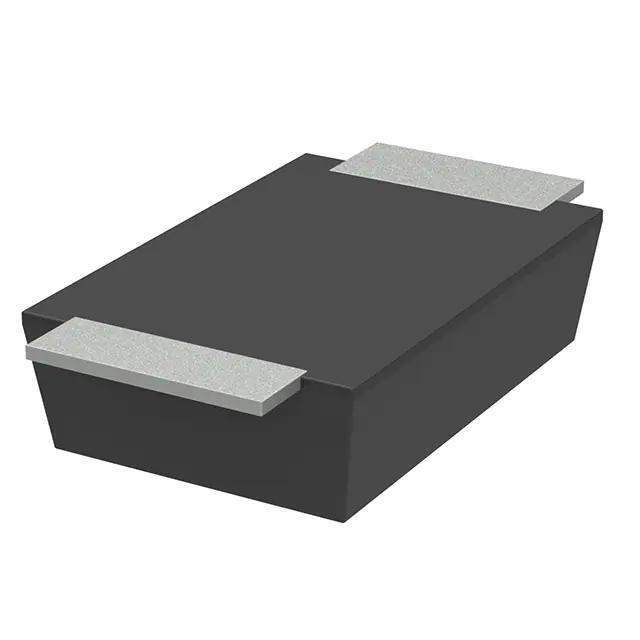

Same model may have multiple batches, images only for reference.
VSS8D5M10HM3/H Vishay
Same model may have multiple batches, images only for reference.

VSS8D5M10HM3/H

Part No VSS8D5M10HM3/H
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTT 100V 2.3A SLIMSMAW
Datasheet
VSS8D5M10HM3/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196621-VSS8D5M10HM3/H
Manufacturer Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products -Diodes Rectifiers -Single Diodes
Series Automotive, AEC-Q101, eSMP®, TMBS®
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Technology Schottky
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SlimSMAW (DO-221AD)
Capacitance @ Vr, F 480pF @ 4V, 1MHz
Ultra Librarian 3D Model Ultra Librarian VSS8D5M10HM3/H CAD Model

Description

The eSMP™ is a series of Schottky diodes manufactured by Vishay General Semiconductor - Diodes Division.

  • Series: eSMP™
  • Application: Automotive applications
  • Standard Compliance: AEC-Q101
  • Mounting Type: Surface mountable
  • Packaging: Tape and reel
  • Capacitance: 480pF @ 4V and 1MHz
  • Package: DO-221AC
  • Leads: SMA flat leads
  • Package Variation: SlimSMAW (DO-221AD)
  • Status: Active
