Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Vishay General Semiconductor - Diodes Division
Series FRED Pt®
Package Tube
Diode Configuration 2 Independent
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 65A (DC)
Voltage - Forward (Vf) (Max) @ If 1.49 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 115 ns
Current - Reverse Leakage @ Vr 50 µA @ 600 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Supplier Device Package SOT-227
Base Product Number UFL80
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1340250-VS-UFL80FA60
Ultra Librarian 3D Model Ultra Librarian VS-UFL80FA60 CAD Model

Description

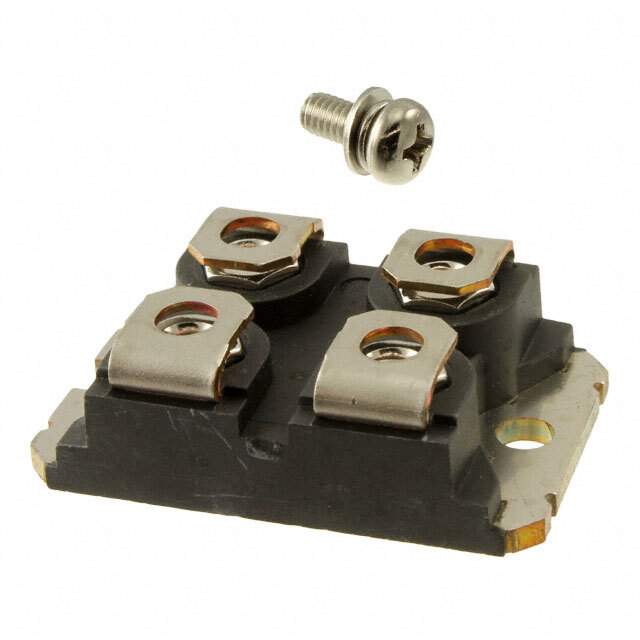

The Vishay VS-UFL80FA60 is a diode rectifier array that has a reverse recovery time (trr) of 115 ns. It has a current reverse leakage of 50 µA at 600 V and a voltage DC reverse (Vr) (Max) of 600 V. The VS-UFL80FA60 is a member of the FRED Pt® series and has a fast recovery time of <500ns, >200mA (Io). It has two independent diode configurations and a current average rectified (Io) (per diode) of 65A (DC). The VS-UFL80FA60 is designed to operate in a temperature range of -55°C to 175°C. This diode rectifier array is widely used in various applications, including industrial and consumer electronics. The VS-UFL80FA60 is available in a tube package and has a chassis mount mounting type. It has a standard SOT-227-4, miniBLOC package and a supplier device package of SOT-227. The VS-UFL80FA60 is REACH unaffected and has an ECCN of EAR99.
