Same model may have multiple batches, images only for reference.

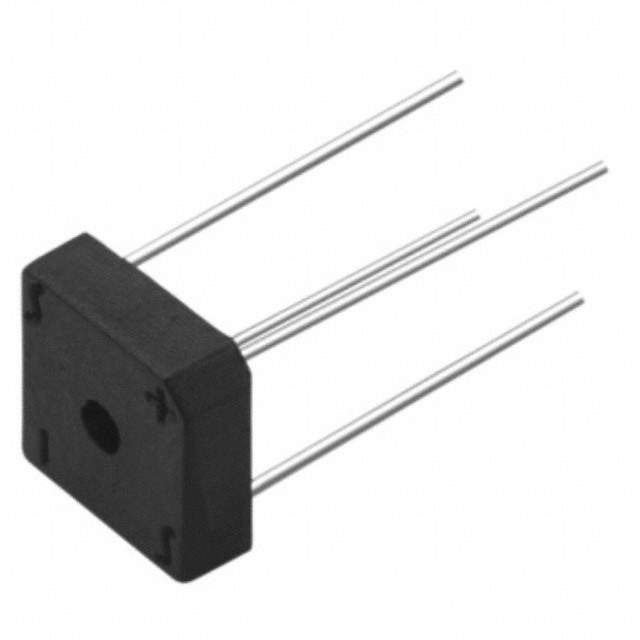

VS-KBPC801PBF Real Image
Same model may have multiple batches, images only for reference.

VS-KBPC801PBF

Part No VS-KBPC801PBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description MOD BRIDGE 1PH 8A D-72
Datasheet
VS-KBPC801PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 100V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 3A
Current - Reverse Leakage @ Vr 10μA @ 100V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, D-72
Manufacturer Package D-72
Win Source Part Number 777983-VS-KBPC801PBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-KBPC801PBF CAD Model

Description

The VS-KBPC801PBF is a standard diode manufactured by Vishay Semiconductor Diodes Division. The specifications are as follows:

  • Package: 4-square, D-72
  • Mounting: Through-hole
  • Peak Reverse Voltage: 100V
  • Average Rectified Current: 8A
  • Current Reverse Leakage @ Vr: 10μA @ 100V
  • Application: Discrete Semiconductor Products
  • Supply and Demand Status: Limited
