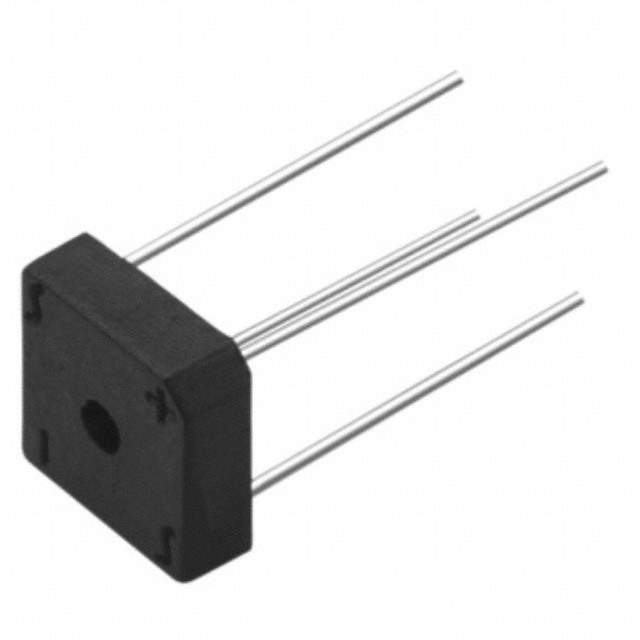

VS-KBPC8005PBF Real Image
Same model may have multiple batches, images only for reference.

VS-KBPC8005PBF

Part No VS-KBPC8005PBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description MOD BRIDGE 1PH 8A D-72
Datasheet
VS-KBPC8005PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 50V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 3A
Current - Reverse Leakage @ Vr 10μA @ 50V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, D-72
Manufacturer Package D-72
Win Source Part Number 777982-VS-KBPC8005PBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-KBPC8005PBF CAD Model

Description

The Vishay Semiconductor Diodes Division VS-KBPC8005PBF is a single-phase standard technology diode. The specifications are as follows:

  • Current Average Rectified (Io): 8A
  • Current-Reverse Leakage @ Vr: 10μA @ 50V
  • Manufacturer Package: D-72
  • Voltage Peak Reverse (maximum): 50V
  • Mounting: Through Hole
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
