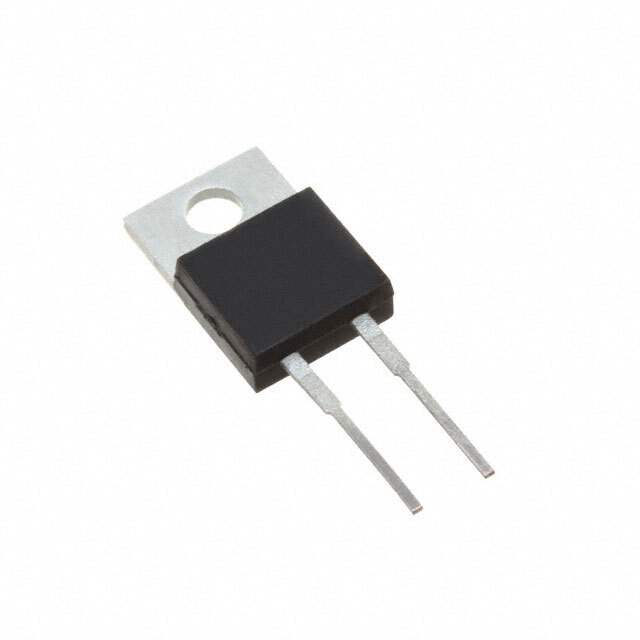

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay
Series FRED Pt®
Package Tube
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 3.15 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 100 ns
Current - Reverse Leakage @ Vr 50 µA @ 1200 V
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number E5TX3012
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 903005-VS-E5TX3012-N3
Ultra Librarian 3D Model Ultra Librarian VS-E5TX3012-N3 CAD Model

Description

The Vishay 903005-VS-E5TX3012-N3 is a FRED Pt® rectifier diode.

  • Series: FRED Pt®
  • Recovery: Fast recovery (less than 500ns)
  • Current Rating: more than 200mA
  • Maximum Reverse Voltage Rating: 1200 V
  • Average Rectified Current: 30A
  • Forward Voltage Drop: 3.15 V @ 30 A
  • Reverse Recovery Time: 100 ns
  • Mounting: Through-hole mounting
  • Package: TO-220-2
  • Manufacturer: Vishay
