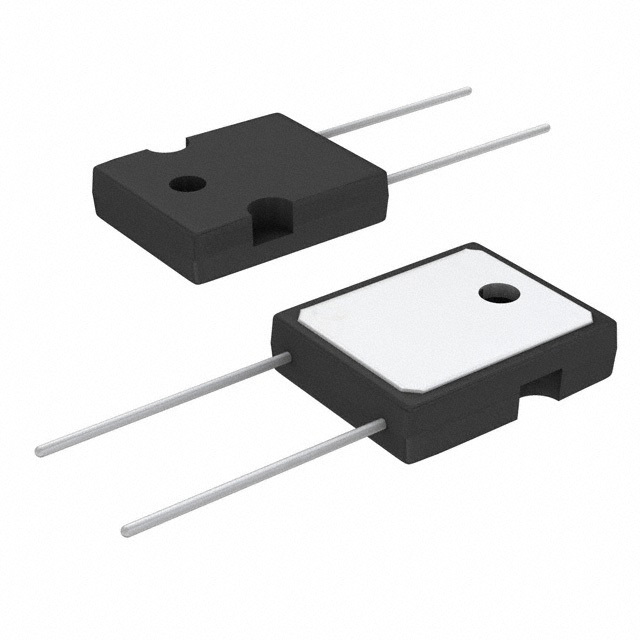

Same model may have multiple batches, images only for reference.
VS-E4PH6006LHN3 Vishay
Same model may have multiple batches, images only for reference.

VS-E4PH6006LHN3

Part No VS-E4PH6006LHN3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 60A TO247AD
Datasheet
VS-E4PH6006LHN3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101, FRED Pt®
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 2 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 68 ns
Current - Reverse Leakage @ Vr 50 µA @ 600 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AD
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number E4PH6006
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366946-VS-E4PH6006LHN3
Ultra Librarian 3D Model Ultra Librarian VS-E4PH6006LHN3 CAD Model

Description

The E4PH6006LHN3 is a single diode rectifier from Vishay General Semiconductor - Diodes Division.

  • Maximum Reverse Voltage: 600V
  • Average Rectified Current: 60A
  • Forward Voltage: 2V @ 60A
  • Series: Automotive, AEC-Q101, FRED Pt®
  • Mounting Type: Through-Hole
  • Reverse Recovery Time: 68ns
  • Current Leakage: 50 µA @ 600V
  • Operating Temperature Range: -55°C to 175°C
