Same model may have multiple batches, images only for reference.

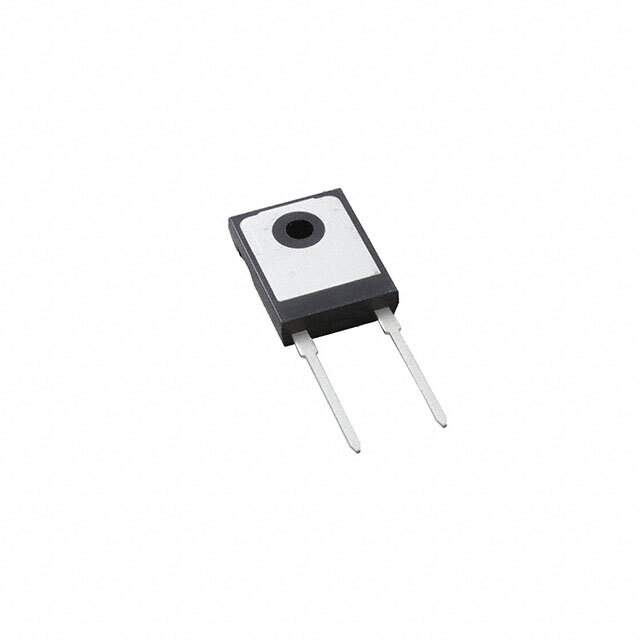

VS-90EPS16L-M3 Real Image
Same model may have multiple batches, images only for reference.

VS-90EPS16L-M3

Part No VS-90EPS16L-M3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.6KV 90A TO247AD / Diode 1600 V 90A Through Hole TO-247AD
Datasheet
VS-90EPS16L-M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) 90A
Voltage - Forward (Vf) (Max) @ If 1.21 V @ 90 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 1600 V
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AD
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number 90EPS16
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1349870-VS-90EPS16L-M3
Ultra Librarian 3D Model Ultra Librarian VS-90EPS16L-M3 CAD Model

Description

The Vishay VS-90EPS16L-M3 is a standard recovery diode rectifier with a current rating of 90A and a voltage rating of 1600V.

  • Current Rating: 90A
  • Voltage Rating: 1600V
  • Operating Temperature Range: -40°C to 150°C
  • Mounting Type: Through Hole
  • Package: TO-247-2
  • Category: Discrete Semiconductor Products
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8541.10.0080
  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Base Product Number: 90EPS16
  • Forward Voltage Rating: 1.21V @ 90A
