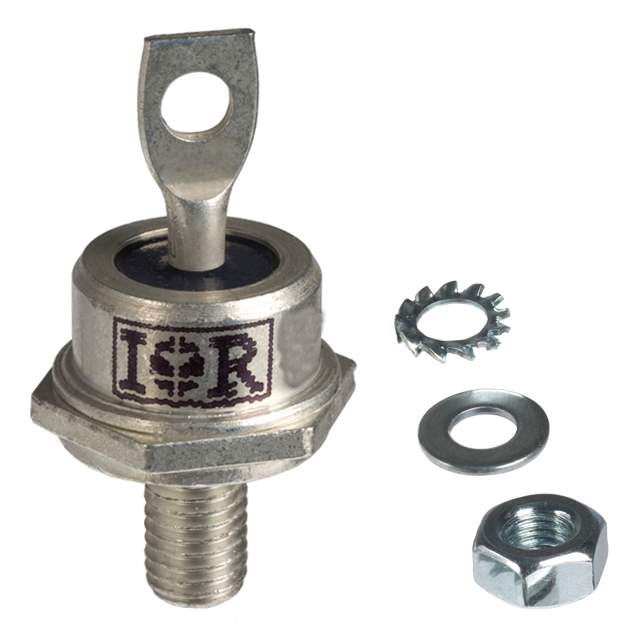

VS-85HFR120

Name: VS-85HFR120
Brand: Vishay
SKU: 766351
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VS-85HFR120
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE GEN PURP 1.2KV 85A DO203AB
Datasheet	VS-85HFR120 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay Semiconductor Diodes Division
Packaging	Bulk
Diode Type	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Maximum)	1200V
Current - Average Rectified (Io)	85A
Voltage - Forward (Vf) (Maximum) @ If	1.2V @ 267A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	9mA @ 1200V
Mounting	Chassis, Stud Mount
Package	DO-203AB, DO-5, Stud
Manufacturer Package	DO-203AB
Operating Temperature - Junction	-65°C ~ 180°C
Win Source Part Number	766351-VS-85HFR120
Popularity	Medium
Supply and Demand Status	Limited
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian VS-85HFR120 CAD Model

Alternative Products

Description

This electronic component is manufactured by Vishay Semiconductor Diodes Division. The Win Source Part Number for this product is 766351-VS-85HFR120. This product is available in bulk packaging and has a standard recovery speed of >500ns and >200mA (Io). The package type for this product is DO-203AB, DO-5, Stud and it can be mounted on chassis or stud mount. The diode type for this product is standard, reverse polarity and it has an average rectified current of 85A. The current reverse leakage at Vr is 9mA @ 1200V. The operating temperature range for this product is -65°C to 180°C.
