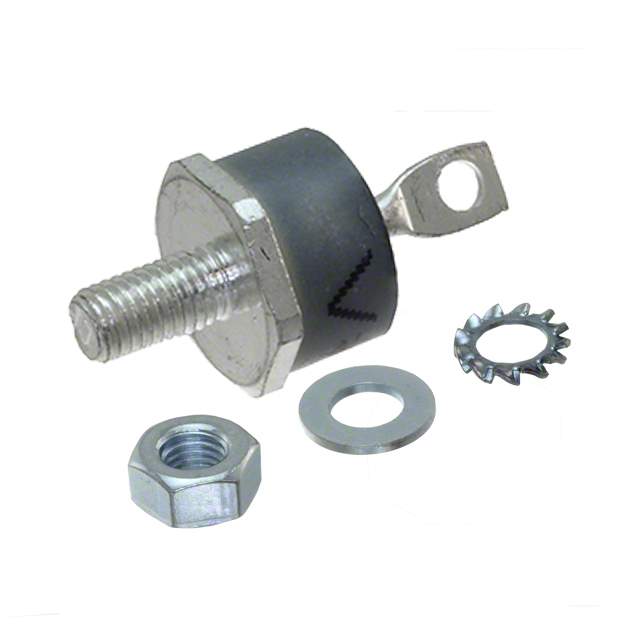

VS-80PFR80 Real Image
Same model may have multiple batches, images only for reference.

VS-80PFR80

Part No VS-80PFR80
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE STD REC 80A DO-5
Datasheet
VS-80PFR80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 800V
Current - Average Rectified (Io) 80A
Voltage - Forward (Vf) (Maximum) @ If 1.4V @ 220A
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Chassis, Stud Mount
Package DO-203AB, DO-5, Stud
Manufacturer Package DO-203AB (DO-5)
Operating Temperature - Junction -55°C ~ 180°C
Win Source Part Number 766272-VS-80PFR80
Popularity Medium
Supply and Demand Status Limited
Family Name VS-80PFR80
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-80PFR80 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-80PFR80 is a standard diode that can handle an average rectified current of 80A and a maximum DC reverse voltage of 800V. It has a forward voltage of 1.4V at 220A and a speed of standard recovery >500ns, >200mA (Io). The package is DO-203AB, DO-5, Stud, and it can be mounted on chassis or stud. It operates in a temperature range of -55°C to 180°C. The VS-80PFR80 is ideal for use in discrete semiconductor products.
