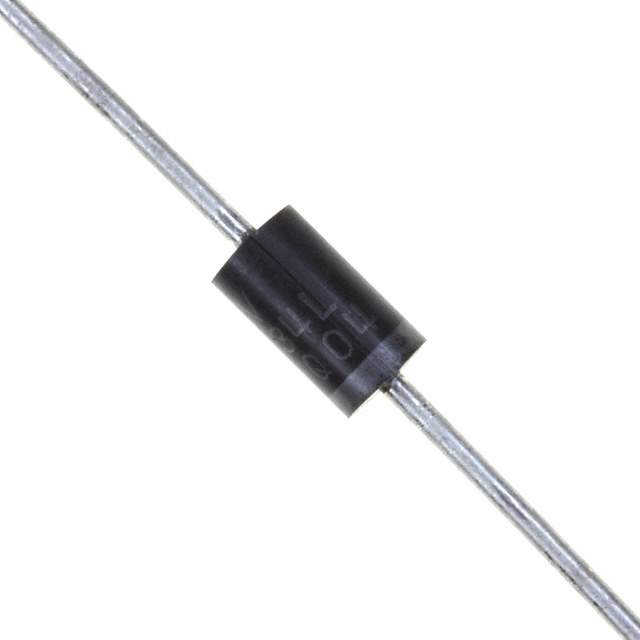

VS-31DQ03

Part No VS-31DQ03
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 3.3A C16
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Part Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) 3.3A
Voltage - Forward (Vf) (Maximum) @ If 570mV @ 3A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 30V
Mounting Style Through Hole
Package C-16, Axial
Manufacturer Package C-16
Operating Temperature - Junction -40°C ~ 150°C
Win Source Part Number 763145-VS-31DQ03
Popularity Medium
Supply and Demand Status Limited
Family Name VS-31DQ03
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VS-31DQ03 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-31DQ03 is a Schottky diode manufactured by Vishay Semiconductor Diodes Division.

  • Category: Discrete Semiconductor Products
  • Average Rectified Current: 3.3A
  • Maximum Forward Voltage: 570mV @ 3A
  • Supply and Demand Status: Limited
