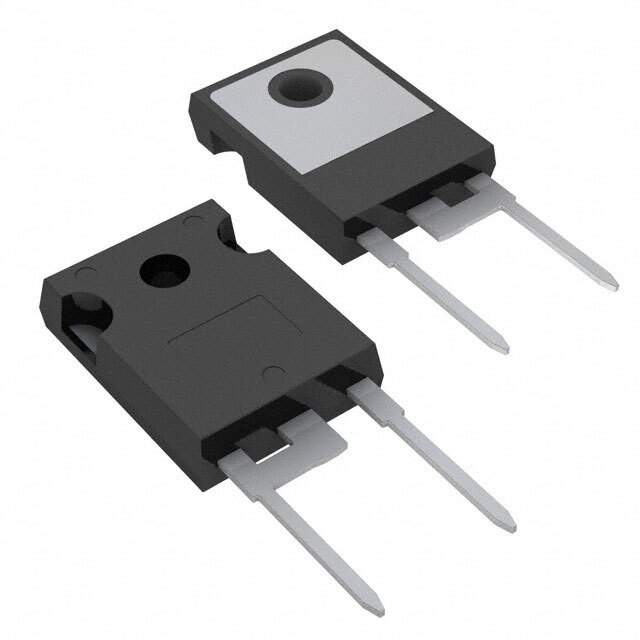

VS-30EPH06-N3 Real Image
Same model may have multiple batches, images only for reference.

VS-30EPH06-N3

Part No VS-30EPH06-N3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 30A TO247AC
Datasheet
VS-30EPH06-N3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 2.6V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 31ns
Current - Reverse Leakage @ Vr 50μA @ 600V
Mounting Through Hole
Case / Package TO-247AC Modified
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 1117632-VS-30EPH06-N3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VS-30EPH06-N3 CAD Model

Description

The Vishay VS-30EPH06-N3 is a fast recovery diode with a maximum voltage rating of 600V and a current rating of 30A.

  • Maximum Voltage Rating: 600V
  • Current Rating: 30A
  • Supply and Demand Status: Balanced
  • Package: TO-247AC Modified
  • Mounting: Through-Hole
  • Manufacturer: Vishay
