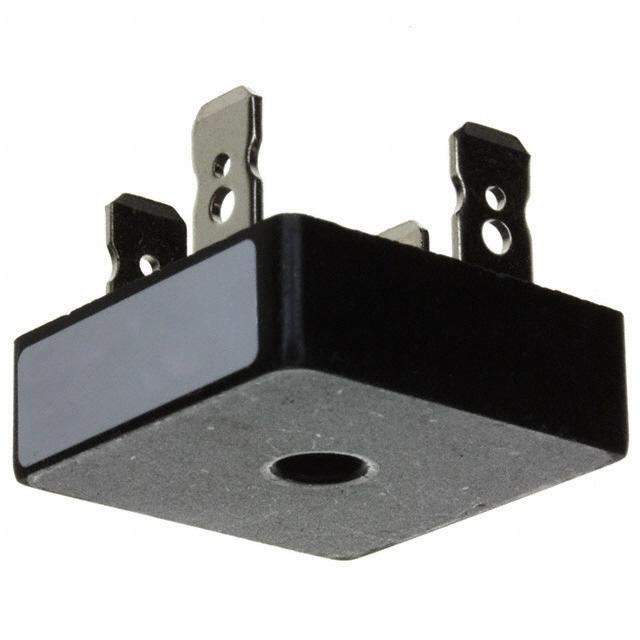

VS-26MB80A Vishay
Same model may have multiple batches, images only for reference.

VS-26MB80A

Part No VS-26MB80A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 800V 25A D-34A
Datasheet
VS-26MB80A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 25A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, D-34
Manufacturer Package D-34
Win Source Part Number 762034-VS-26MB80A
Popularity Medium
Supply and Demand Status Limited
Family Name VS-26MB80A
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian VS-26MB80A CAD Model

Description

The Vishay Semiconductor Diodes Division VS-26MB80A is a single-phase diode manufactured by Vishay Semiconductor Diodes Division.

  • Average Rectified Current: 25A
  • Peak Reverse Voltage: 800V
  • Current Reverse Leakage: 10μA @ 800V
  • Designed for Use in: Discrete Semiconductor Products
  • Package: 4-Square, D-34
  • Terminal: QC
