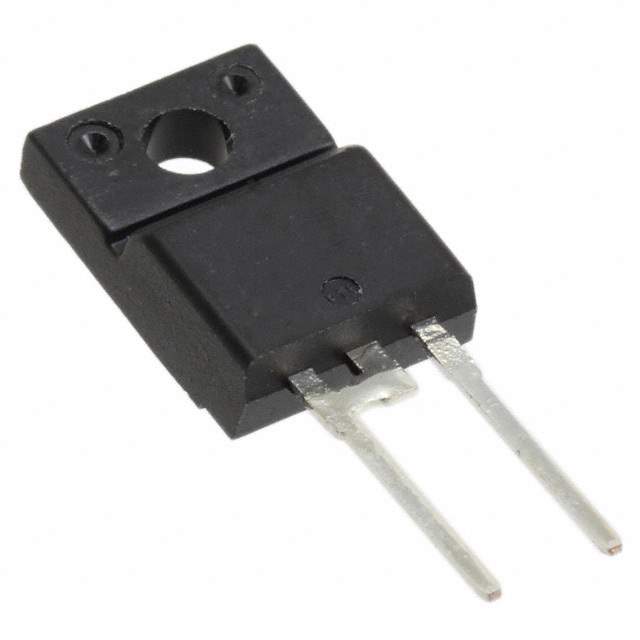

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 800V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 10A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50μA @ 800V
Mounting Style Through Hole
Package TO-220-2 Full Pack
Manufacturer Package TO-220AC Full Pack
Operating Temperature - Junction -40°C ~ 150°C
Win Source Part Number 760162-VS-10ETS08FPPBF
Popularity Medium
Supply and Demand Status Limited
Family Name VS-10ETS08FP
Introduction Date March 16, 2012
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VS-10ETS08FPPBF CAD Model

Description

The Vishay Semiconductor Diodes Division 760162-VS-10ETS08FPPBF is a standard diode with a current rating of 10A.

  • Diode Type: Standard
  • Current Rating: 10A
  • Reverse Voltage: 800V
  • Forward Voltage Drop: 1.1V @ 10A
  • Package: TO-220-2 full pack
