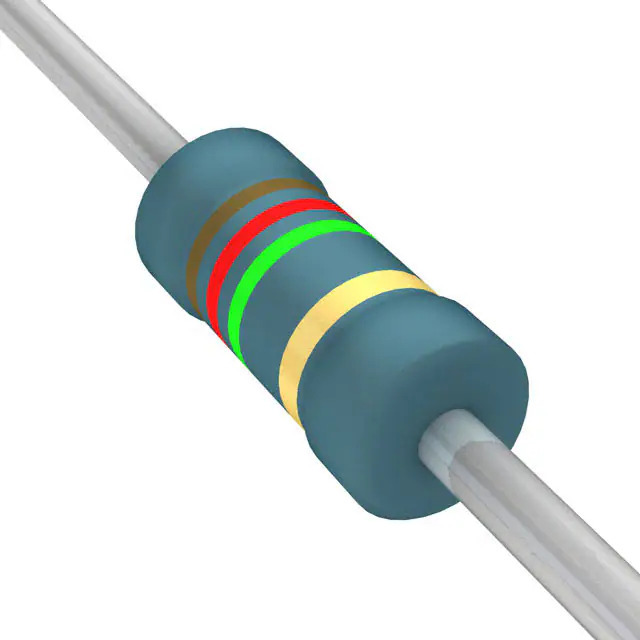

Same model may have multiple batches, images only for reference.

VR37000001204JA100

Name: VR37000001204JA100
Brand: Vishay
SKU: 1374875
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VR37000001204JA100
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 1.2M OHM 5% 1/2W AXIAL
Datasheet	VR37000001204JA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	VR37
Product Status	Active
Resistance	1.2 MOhms
Tolerance	±5%
Power (Watts)	0.5W, 1/2W
Composition	Metal Film
Features	Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.157" Dia x 0.354" L (4.00mm x 9.00mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1374875-VR37000001204JA100
Ultra Librarian 3D Model	Ultra Librarian VR37000001204JA100 CAD Model

Alternative Products

Description

The VR37 is a through-hole resistor from Vishay Beyschlag/Draloric/BC Components.

Resistance: 1.2 MOhms
Tolerance: ±5%
Power Rating: 0.5W (1/2W)
Resistor Type: Metal Film
Temperature Coefficient: ±200ppm/°C
Automotive Standard: AEC-Q200
Pulse Withstanding: Yes
Package: Axial
Number of Terminations: 2
Size (Diameter): 0.157" (4.00mm)
Size (Length): 0.354" (9.00mm)
Temperature Range: -55°C to 155°C
