Same model may have multiple batches, images only for reference.

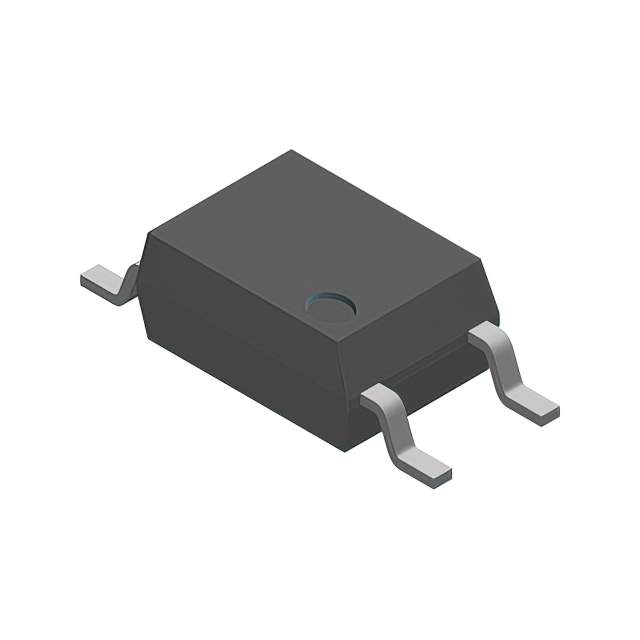

VOMA618A-X001T Real Image
Same model may have multiple batches, images only for reference.

VOMA618A-X001T

Part No VOMA618A-X001T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOCOUPLER-PHOTO-TRANSISTOR DET / Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Datasheet
VOMA618A-X001T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 50% @ 1mA
Current Transfer Ratio (Max) 600% @ 1mA
Turn On / Turn Off Time (Typ) 6.8µs, 2.3µs
Rise / Fall Time (Typ) 1.8µs, 1.7µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.28V
Current - DC Forward (If) (Max) 20 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C ~ 110°C
Mounting Surface Mount
Case / Package 4-SMD, Gull Wing
Supplier Device Package 4-SOP
Base Product Number VOMA618
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Part Number 751-VOMA618A-X001TTR
Standard Package 2,000
Win Source Part Number 1331920-VOMA618A-X001T
Ultra Librarian 3D Model Ultra Librarian VOMA618A-X001T CAD Model

Description

The VOMA618A-X001T is an optoisolator transistor with a photovoltaic output from Vishay Semiconductor Opto Division.

  • Manufacturer: Vishay Semiconductor Opto Division
  • Output: Photovoltaic
  • Mounting Style: Surface Mount
  • Voltage Isolation: 3750Vrms
  • Rise/Fall Time: 1.8/1.7μs
  • Turn On/Turn Off Time: 6.8/2.3μs
  • Package: 4-SMD, Gull Wing
