Same model may have multiple batches, images only for reference.

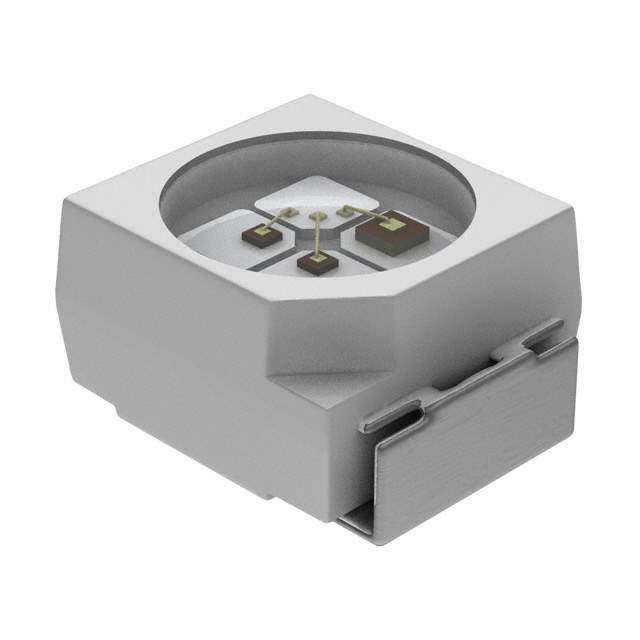

VLMD3105-GS08 Real Image
Same model may have multiple batches, images only for reference.

VLMD3105-GS08

Part No VLMD3105-GS08
Manufacturer Vishay
Catalog LED Indication - Discrete
Description LED RED CLEAR 2PLCC SMD / Red 648nm LED Indication - Discrete 1.8V 2-SMD, J-Lead
Datasheet
VLMD3105-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Vishay Semiconductor Opto Division
Series VLM.3
Package Tape & Reel (TR)
Color Red
Configuration Standard
Lens Transparency Clear
Millicandela Rating 20mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 1.8V
Current - Test 10mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 648nm
Wavelength - Peak 650nm
Package / Case 2-SMD, J-Lead
Supplier Device Package 2-PLCC
Dimension 3.00mm L x 2.80mm W
Height (Max) 1.85mm
Base Product Number VLMD3105
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 7,500
Win Source Part Number 1117896-VLMD3105-GS08
Ultra Librarian 3D Model Ultra Librarian VLMD3105-GS08 CAD Model

Description

The Vishay VLM.3 VLMD3105-GS08 LED indication is a surface mount device. It is manufactured by Vishay.

  • Dominant Wavelength: 648nm
  • Peak Wavelength: 650nm
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Reel
  • Popularity: High
  • Standard Package: 7,500
  • Other Part Numbers: VLMD3105GS08
