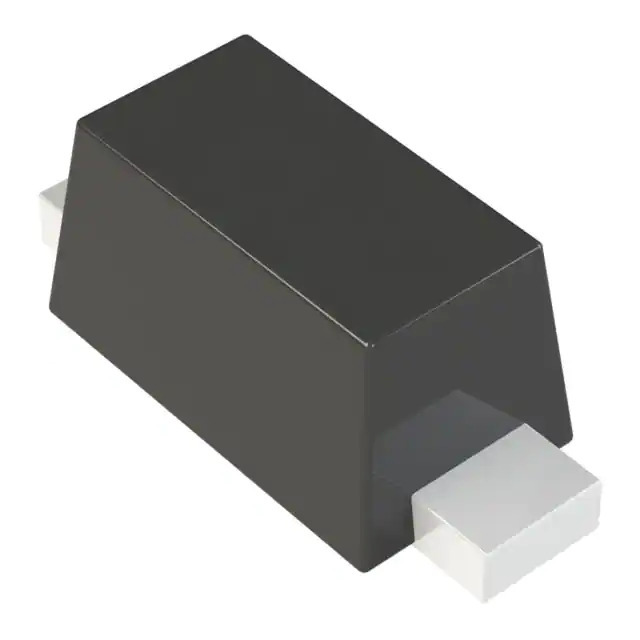

VESD16C1-02VHG3-08

Name: VESD16C1-02VHG3-08
Brand: Vishay
SKU: 1362050
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VESD16C1-02VHG3-08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 16VWM 28VC SOD523 / 28V Clamp 3.6A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Datasheet	VESD16C1-02VHG3-08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Vishay General Semiconductor - Diodes Division
Series	Automotive, AEC-Q101
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	16V (Max)
Voltage - Breakdown (Min)	17V
Voltage - Clamping (Max) @ Ipp	28V
Current - Peak Pulse (10/1000µs)	3.6A (8/20µs)
Power - Peak Pulse	100W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	27pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Base Product Number	VESD16
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362050-VESD16C1-02VHG3-08
Ultra Librarian 3D Model	Ultra Librarian VESD16C1-02VHG3-08 CAD Model

Alternative Products

Description

The VESD16C1-02VHG3-08 is a TVS diode from Vishay General Semiconductor - Diodes Division.

Series: Automotive, AEC-Q101
Package: SC-79, SOD-523
Reverse Standoff Voltage: 16V
Breakdown Voltage: 17V
Clamping Voltage: 28V @ Peak Pulse Current (Ipp)
Peak Pulse Power Rating: 100W
Mounting Type: Surface Mount
Application: Automotive
