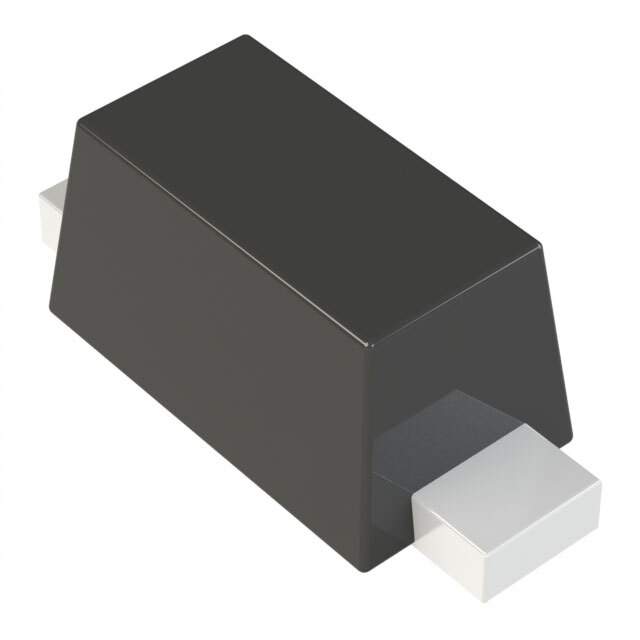

VESD12-02V-G-08

Name: VESD12-02V-G-08
Brand: Vishay
SKU: 534215
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VESD12-02V-G-08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 12VWM 25VC SOD523
Datasheet	VESD12-02V-G-08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	12V (Max)
Minimum Breakdown Voltage	14V
Max Clamping Voltage	25V (Typ)
Peak Pulse Current(Ippm)	2A (8/20μs)
Power Dissipation - Pd	25W
Applications	General Purpose
Capacitance @ Frequency	30pF @ 1MHz
Temperature Range - Operating	-40°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SOD-523
Win Source Part Number	1117003-VESD12-02V-G-08
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian VESD12-02V-G-08 CAD Model

Alternative Products

Description

The Vishay 1117003-VESD12-02V-G-08 is a Zener diode designed for general purpose applications.

Mounting Type: Surface-mount Device (SMD)
Channel: Unidirectional
Capacitance @ Frequency: 30pF @ 1MHz
Stand-off Voltage: 12V (Max)
Minimum Breakdown Voltage: 14V
Maximum Clamping Voltage: 25V (Typ)
Peak Pulse Current(Ippm): 2A (8/20μs)
Power Dissipation - Pd: 25W
Package: SOD-523
Status: Active
Popularity: Medium
Supply and Demand Status: Sufficient
Recommended Use: Circuit Protection
