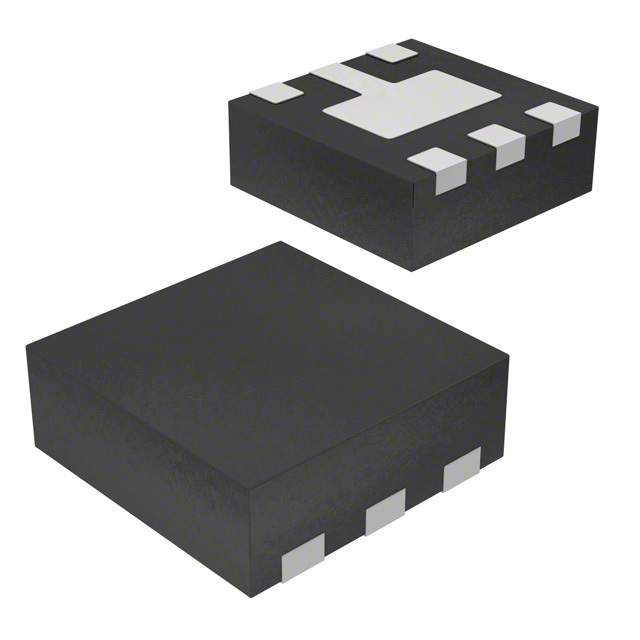

Same model may have multiple batches, images only for reference.
VESD05A5A-HS3-GS08 Vishay
Same model may have multiple batches, images only for reference.

VESD05A5A-HS3-GS08

Part No VESD05A5A-HS3-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 13VC LLP75
Datasheet
VESD05A5A-HS3-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 5
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 13V
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Power Dissipation - Pd 33W
Applications General Purpose
Capacitance @ Frequency 13pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP75-6A
Win Source Part Number 1117000-VESD05A5A-HS3-GS08
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VESD05A5A-HS3-GS08 CAD Model

Description

The Vishay 1117000-VESD05A5A-HS3-GS08 is a zener type electronic component that is designed for general-purpose applications.

  • Minimum Breakdown Voltage: 6V
  • Max Clamping Voltage: 13V
  • Package: LLP75-6A
  • Mounting Type: Surface-mount Device
  • Status: Obsolete
  • Popularity: Medium
  • Supply and Demand: Balanced
